HSV GEN-F2 / GTSR W1 - Australian Superpower

Some might ask why we would build a car that brings true race-track performance to the road. It’s simple. Because we’re HSV and we can.

Taking the iconic GTSR nameplate to its most sophisticated and powerful conclusion, is the GTSR W1. Carbon fibre fender vents, a carbon fibre airbox, an Aeroflow Performance rear spoiler with carbon fibre upper and distinctive W1 badging let the world know you’re about to unleash something incredibly special.

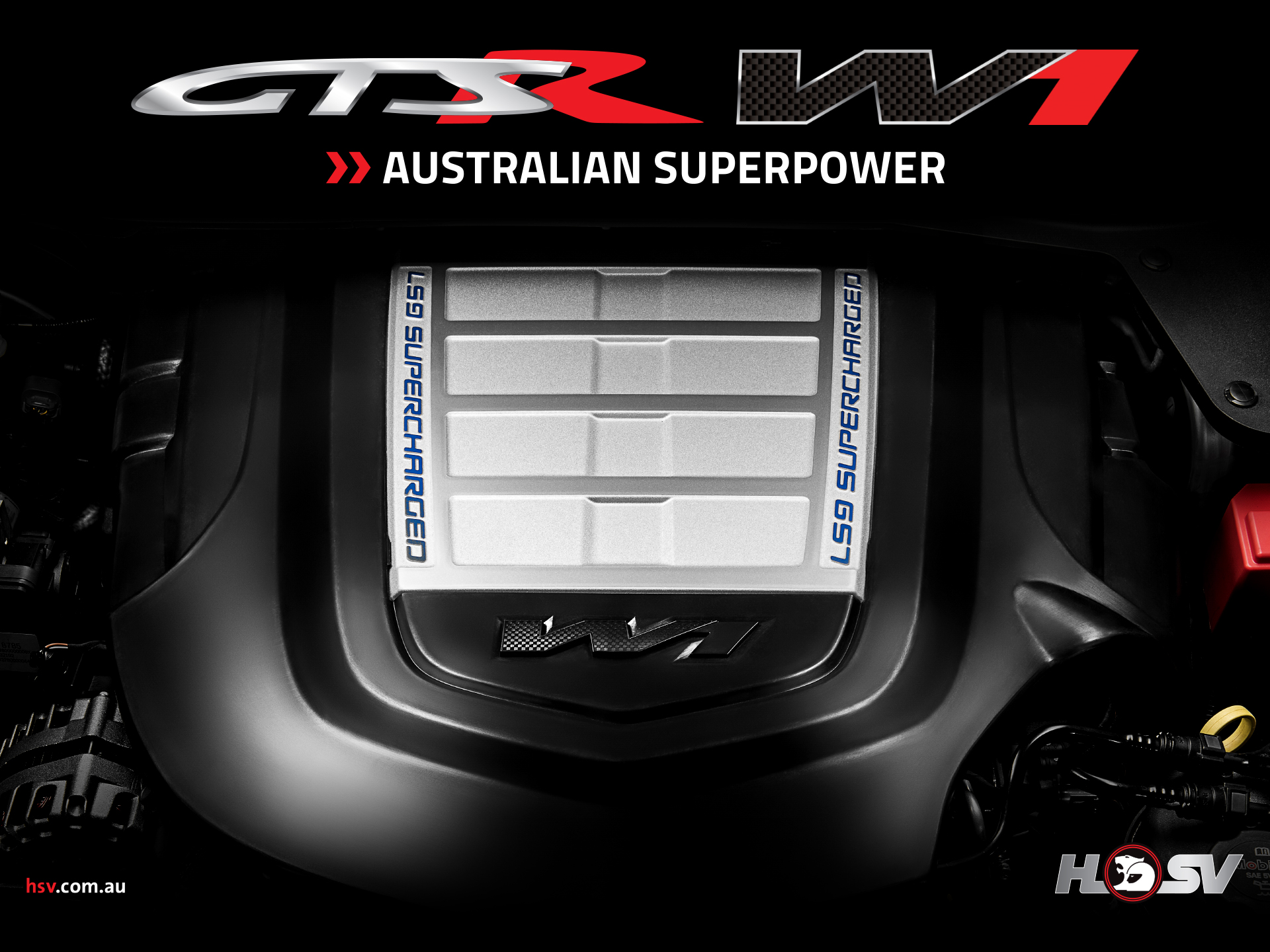

Filling every inch of the car’s engine bay is a hand-built, 6.2 litre, supercharged LS9 Generation IV alloy V8. The pinnacle of 30 years of HSV engineering, this fire-breathing powerplant is fitted with titanium connecting rods and inlet valves, a dry sump oiling system, and a supercharger with twin four-lobe rotors that pumps 2.3 litres of air per revolution. The result is a mind-blowing 474kW of power and 815Nm of torque.

On hand to make the most of all that power is a close-ratio Tremec TR-6060 (MH3 spec.) 6-speed manual transmission that’s been specially designed to optimise track performance and improve driveability.

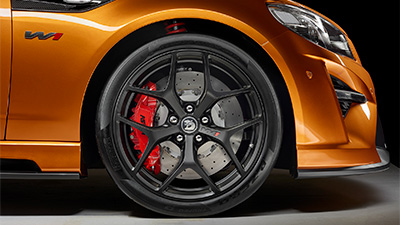

The GTSR W1 also boasts 20”x9” (front) & 20”x10” (rear) SV Panorama forged alloy wheels finished in Matte Black and wrapped in specially selected Pirelli P Zero Trofeo R* track tyres that help deliver incredible traction, blistering standing starts and outstanding mid-corner grip. Put simply, the GTSR W1 is as close to a supercar as it gets.

A unique W1 I.D. plate along with W1 badging on the key fob, sill plates and headrests let you know you’re stepping into the cockpit of a machine that’s been designed to deliver race-track exhilaration.

Once inside, 8-way electrically adjustable HSV Podium front seats finished in Alcantara with diamond-quilted stitching deliver the kind of driving position and support that you’d expect in a race-car. Adding to the supercar feel are an Alcantara-wrapped steering wheel and gear lever that deliver enhanced grip and control.

But it’s when you fire up the supercharged LS9 engine and the specially calibrated bi-modal twin exhaust system roars to life that you know you’re in for one hell of a drive. And not just because of the incredible power and torque at your disposal. The GTSR W1 boasts a SupaShock suspension system that is the ultimate high-performance package. The unique dampers offer the lowest frictional losses of any damper readily available. The result is exceptional handling that enables the car to devour even the sharpest corners with ease.

Adding to the GTSR W1’s outstanding cornering abilities is a world-class braking system. Boasting forged 6-piston AP Racing monoblock calipers with massive 410mm front rotors, the system delivers leading-edge brake modulation and pedal feel.

The GTSR W1 is HSV’s road-legal race-car.

*While these tyres are suitable for use in damp/wet conditions, HSV recommends the vehicle should be driven with caution and driving conditions respected, as under these conditions, the tyres may not offer the same level of grip as standard passenger tyres.

Specifications

Engine & Transmission

Limited Slip Differential with HSV Specific Ratio & Electronic Torque Vectoring	■
474 kW 6.2 litre supercharged LS9 Generation IV alloy V8 engine with 6-speed close-ratio manual transmission	■
Hi-flow exhaust system with x-pipe intermediate and bi-modal mufflers	■
Carbon fibre airbox	■

Safety & Handling

Electronic Stability Control (ESC) incorporating: ABS, EBD, EBA & TCS	■
Driver Preference Dial (DPD) incorporating: ESC, Traction Control, Launch Control (manual only), EPS, TV & bi-modal exhaust	■
Torque Vectoring (TV)	■
Electric Power Steering (EPS)	■
Automatic park assist	■
Front & rear park assist	■
Forward collision alert	■
Lane departure warning	■
Side blind zone alert	■
Reverse traffic alert	■
Head-Up display	■
Hill hold control	■
Hill start assist	■
SupaShock suspension system	■
410mm (front) & 372mm (rear) drilled 2-piece discs with forged monoblock 6-piston calipers (red)	■
Dual-stage airbags for driver & front passenger	■
Side impact airbags (thorax/pelvis) for driver & front passenger	■
Side curtain airbags	■
Front seatbelts with load limiters & pyrotechnic pretensioners	■
Rear seat child restraint anchor points (3)	■
Automatic Locking Retractor (ALR) rear seatbelts	■
ISOFIX child seat anchorage system	■

Security

Passive entry & push button start with sensor key	■
Time delay on entry, automatic illumination when engine turned off	■
Alarm	■
DataDot theft deterrent system	■

Driver

Steering wheel height & reach adjustment	■
Alcantara-wrapped sports profile steering wheel and gear selector	■
Multifunction steering wheel featuring illuminated controls for: Sound system, trip-computer, Bluetooth^®^† for compatible mobile phones, Satellite Navigation	■
Priority 4-Button Flip Key (manual only): Lock/Unlock/Panic/Tonneau	■
Cruise control	■
Enhanced multifunction display (multi colour): Vehicle information menu, trip information menu, fuel economy menu, warnings/messages	■
HSV instrument cluster	■
Unique HSV centre console	■
Centre console model I.D. plate	■
Road speed dependent variable intermittent wipers	■
‘W1’ sill plates	■
Rain sensing wipers	■
Automatic headlamp mode. Switches on at twilight or low light	■
Power side exterior mirrors	■
Bluetooth^®^† with Enhanced Voice Control for compatible mobile phones	■
Alloy faced pedals	■
Rear view camera with active gridlines – integrated in multifunction colour MyLink display	■
Satellite Navigation (full colour mapping with live traffic updates, traffic management control & points of interest)	■

Cabin Comfort

Dual-zone electronic climate control: driver & front passenger	■
Electric tilt & slide sunroof	□
HSV ’GTSR’ floor mats	■
HSV matte Luxury appliqués and console cover	■
Rear seat centre armrest	■

Seating

HSV Podium seats with Alcantara trim	■
Heated front seats	■
Power adjustable driver & front passenger seat lumbar support	■
8-way electric adjustment of driver & front passenger seats	■

Wheels & Tyres

265/35 R20 (front) & 295/30 R20 (rear) Pirelli P Zero Trofeo R track tyres	■
20” x 9” (front) x 20” x 10” (rear) SV Panorama forged alloy wheels in Matte Black	■
Black 20” temporary spare wheel (cast - no tyre pressure monitor)	□
Tyre sealant & air compressor kit	■

Exterior

Projector headlamps (Black bezel)	■
HSV LED daytime running lamps	■
HSV quad exhaust outlets with dual Shadow Chrome tips	■
HSV GTSR Performance body design	■
Unique W1 side-skirt paintout	■
HSV LED tail lamps	■
HSV Aeroflow Performance rear spoiler with carbon fibre upper	■
Pitch black mirror scalps	■
Carbon fibre W1 fender vents	■
Pitch Black belt line & door frame moulding	■
Phantom Black roof^ˆ	□
Covercraft GTSR W1 individually numbered Weathershield HP car cover	□

Entertainment

MyLink infotainment system	■
8” high-resolution, colour touch-screen display	■
Enhanced Driver Interface (EDI)	■
Embedded Apps - Pandora^® & Stitcher SmartRadio^™	■
Single CD player able to play MP3 tracks	■
USB input^†: Siri voice control/touch-screen access for playlists, artist, albums, songs & genres	■
Full iPod^® integration^†: Enhanced Voice Control/touch-screen access for playlists, artist, albums, songs & genres	■
Enhanced Voice Control: Phone calls, radio, navigation, Smartphone/iPod^®/MP3 or USB audio control	■
Bluetooth^®^† audio streaming	■
9-speaker BOSE^® premium audio	■
DVD Playback (when stationary)	■

Storage & Cargo

Sunglasses holder (except where sunroof fitted)	■
Twin cup holders in front centre console	■
Centre console storage compartment with armrest lid	■
Auxiliary power socket in console	■

^† Functionality will depend on the level of compatibility of your device.
^ˆ Not available with Slipstream, Phantom or Nitrate paint finishes.
All power outputs noted based on 98 RON (PULP).

Standard ■ Optional □

Technical Data

Engine

6.2 litre supercharged LS9 Generation IV alloy V8. Generation VI supercharger with twin four-lobe rotors (2.3 litres/revolution). Integrated dual-element air-to-liquid intercooler. Carbon fibre airbox. Direct-mount ignition coils. Centre-feed fuel system. High-flow rotocast cylinder heads. E67 control module. Ceramic coated, stainless steel headers with integrated catalytic converters.

CAPACITY (cc) 6162

COMPRESSION (:1) 9.1

Power (DIN kW)

474 kW^† @ 6500rpm

Torque (DIN Nm)

815 Nm @ 3900rpm

Exhaust System

HSV quad exhaust outlets with Shadow Chrome tips. Hi-flow exhaust system with x-pipe intermediate and bi-modal mufflers.

Recommended Petrol Octane Rating

98 RON (PULP). Note that using 95 RON (PULP) or lower will not cause any problems, but will result in slightly less engine performance and economy.

Gear Ratios

TREMEC TR-6060 (MH3 SPEC.) CLOSE-RATIO 6-SPEED MANUAL TRANSMISSION

1 2.29

2 1.61

3 1.21

4 1.00

5 0.82

6 0.68

Final Drive 3.73

Suspension

SupaShock suspension system.

FRONT:	Coil over monotube front strut with double acting dual-bush lateral support combined with multilink suspension and steering. Direct acting stabiliser bar.
REAR:	Multilink independent suspension controlled via coil over damper with built in lateral support.

Electronic Stability Control (ESC)

Incorporating Anti-Lock Braking System (ABS), Electronic Brake force Distribution (EBD), Electronic Brake Assist (EBA), Traction Control System (TCS), Competition Mode ESC, Launch Control (manual only) and Torque Vectoring.

Petrol Tank Capacity

71 litres

Interior Cargo Capacity

496 litres

Steering

Electric Power Steering

Turning Circle

11.4m (kerb to kerb)

Track (mm)

FRONT 1622

REAR 1590

Exterior Dimensions (mm)

LENGTH
5044

WIDTH (exc. mirrors)
1899

HEIGHT
1468

WHEELBASE
2915

Interior Dimensions (mm)

LEG
1071/1001

SHOULDER
1501/1450

HEAD
985/965

HIP
1439/1472

Service Intervals

The complimentary inspection is due at 1 month of owning your new HSV. The first service is due at 15,000km or 9 months (which ever occurs first). Thereafter at every 15,000km or 9 months since the last service (which ever occurs first). Additional services are required under certain driving conditions, such as when towing (refer owner’s handbook).
