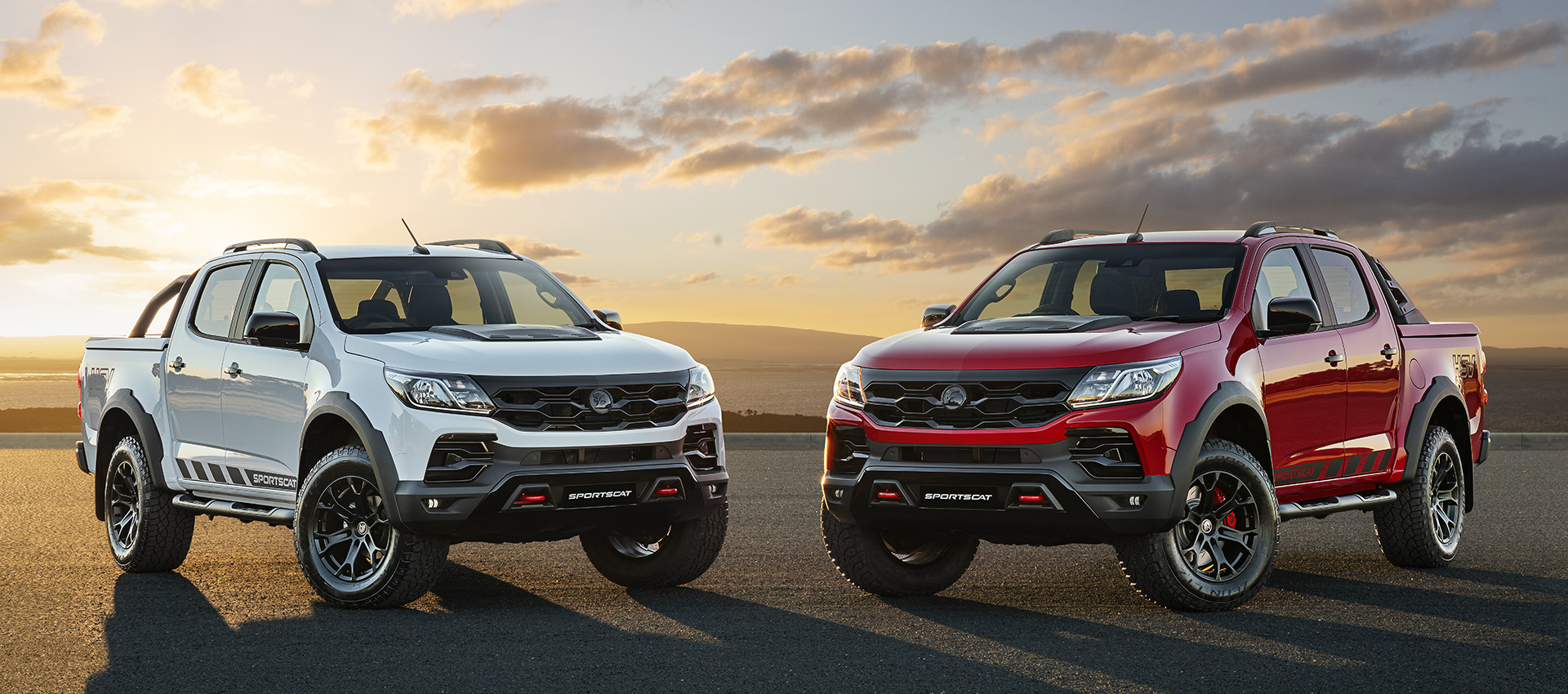

Series 2 SportsCat

Australia’s most dynamic sports 4x4

Bold and undeniably dynamic, the new Series 2 SportsCat V and SportsCat SV are in a league of their own. One glance at their striking and sophisticated lines is enough to get your heart pumping. Get behind the wheel and you’ll quickly discover you’re in complete control of a 4x4 that takes driving dynamics to a whole new level. If you’re looking for Australia’s premium sports 4x4 range, you’ve found it.

Make it yours

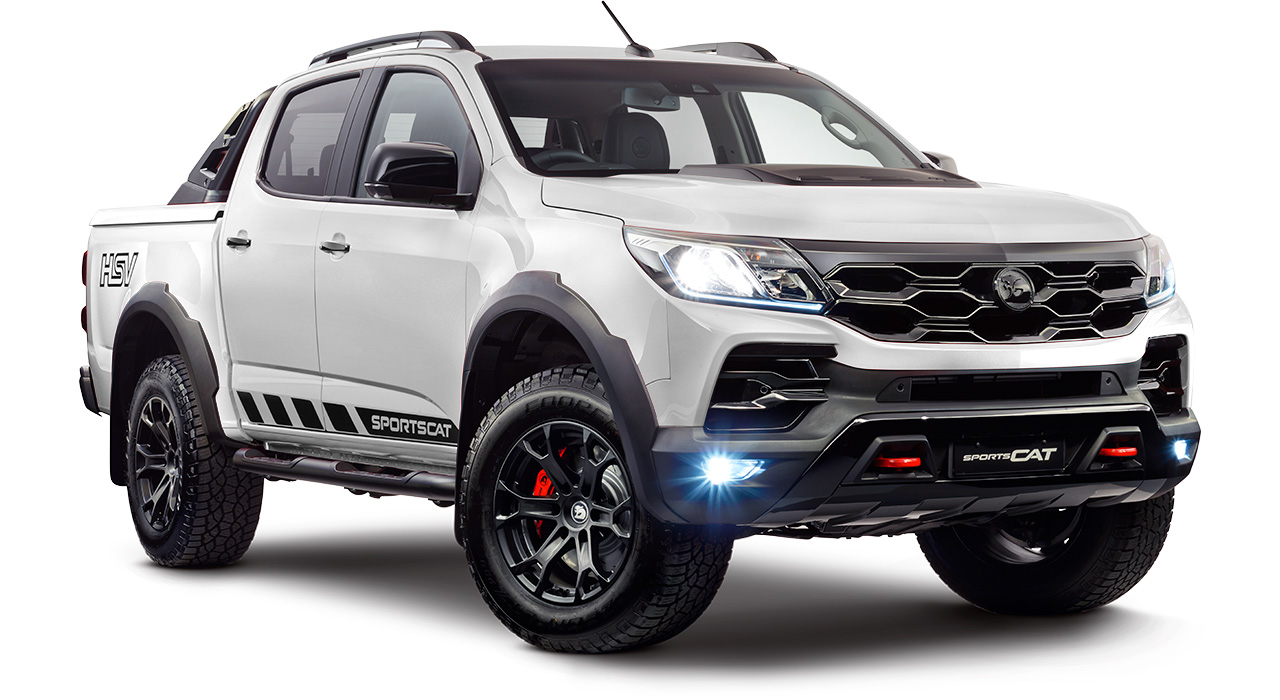

HSV SportsCat SV Summit White Summit White

*SportsCat SV shown with optional Sailplane.

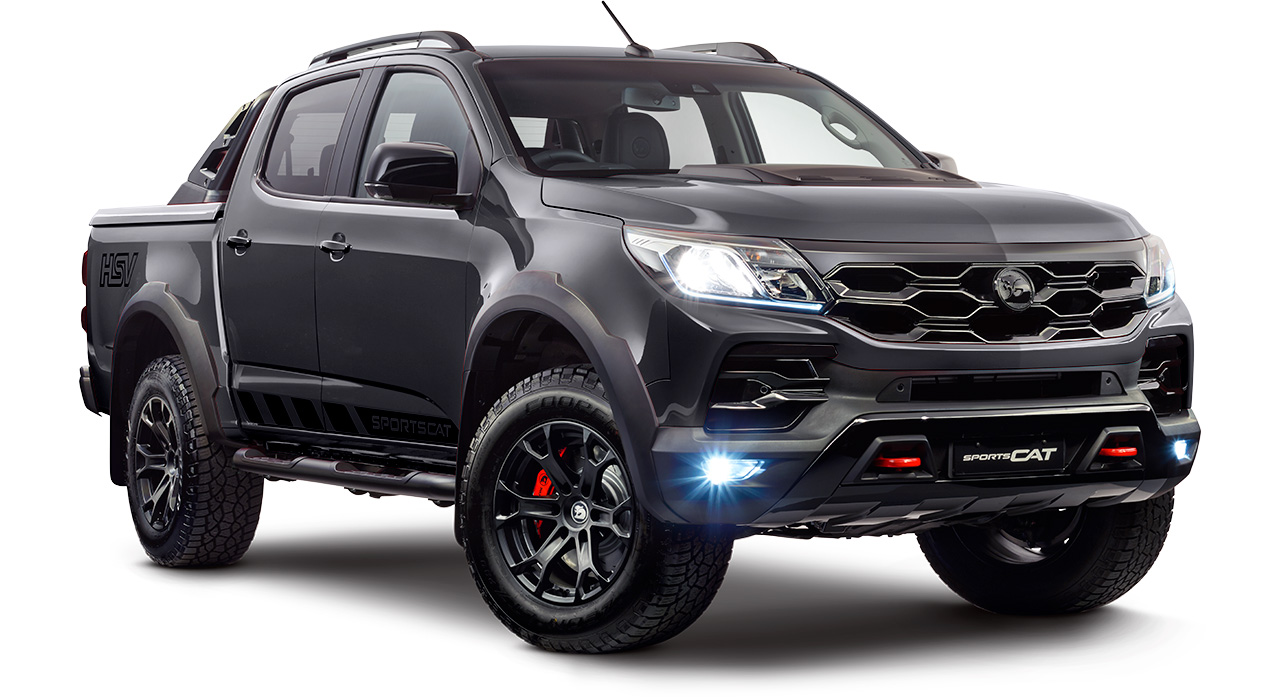

HSV SportsCat SV Dark Shadow Dark Shadow

*SportsCat SV shown with optional Sailplane.

HSV SportsCat SV Absolute Red Absolute Red

*SportsCat SV shown with optional Sailplane.

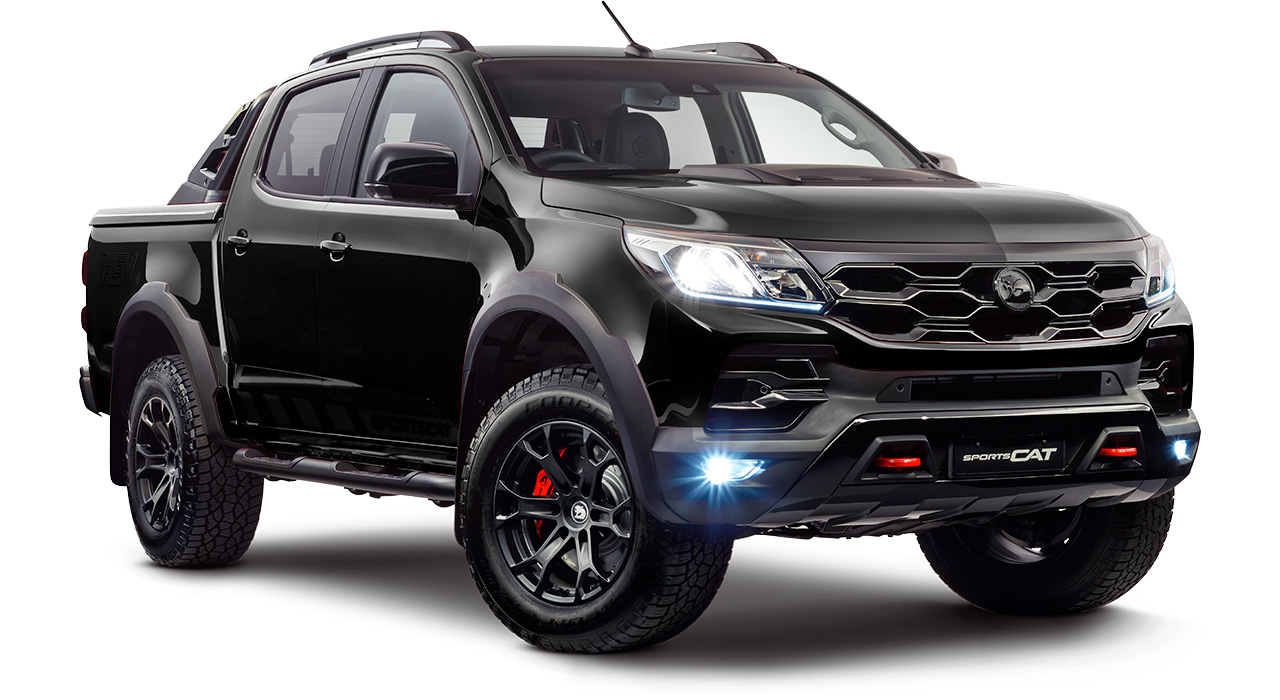

HSV SportsCat SV Mineral Black Mineral Black

*SportsCat SV shown with optional Sailplane.

HSV SportsCat SV Crush Crush

*SportsCat SV shown with optional Sailplane.

HSV SportsCat V Summit White Summit White
HSV SportsCat V Dark Shadow Dark Shadow
HSV SportsCat V Absolute Red Absolute Red
HSV SportsCat V Mineral Black Mineral Black

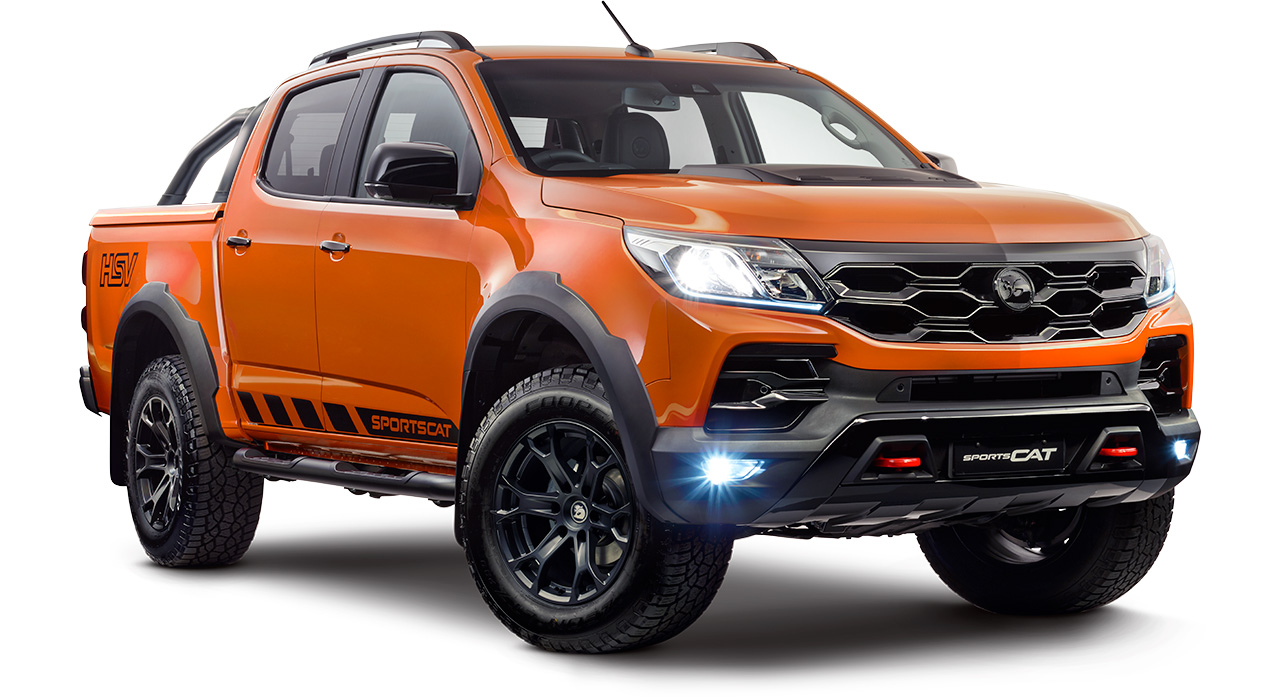

HSV SportsCat V Crush Crush
Designed to impress

SportsCat by Design

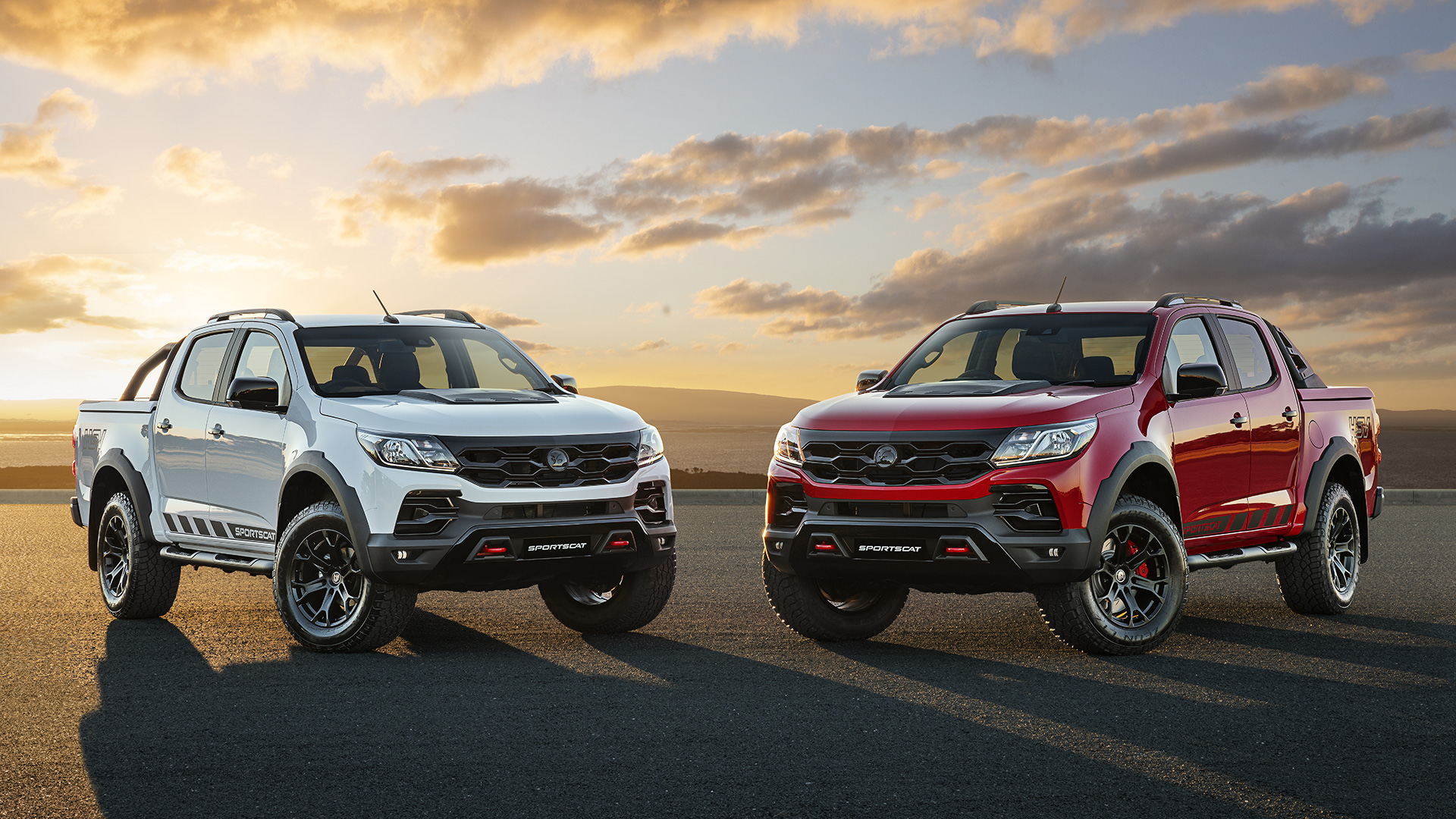

A standout in the sports 4x4 field, the new Series 2 SportsCat has it over the competition in more ways than one. Bold and aggressive HSV design cues and a wider track^ give the vehicle a stance and presence unlike any other. One look at the distinctive bonnet bulge and striking front fascia with integrated gloss black ‘3D’ grille and outer inserts, splash tray, recovery hooks and LED fog lamps, and you know this is a sports 4x4 to be reckoned with.

^Compared to Holden Colorado Z71.

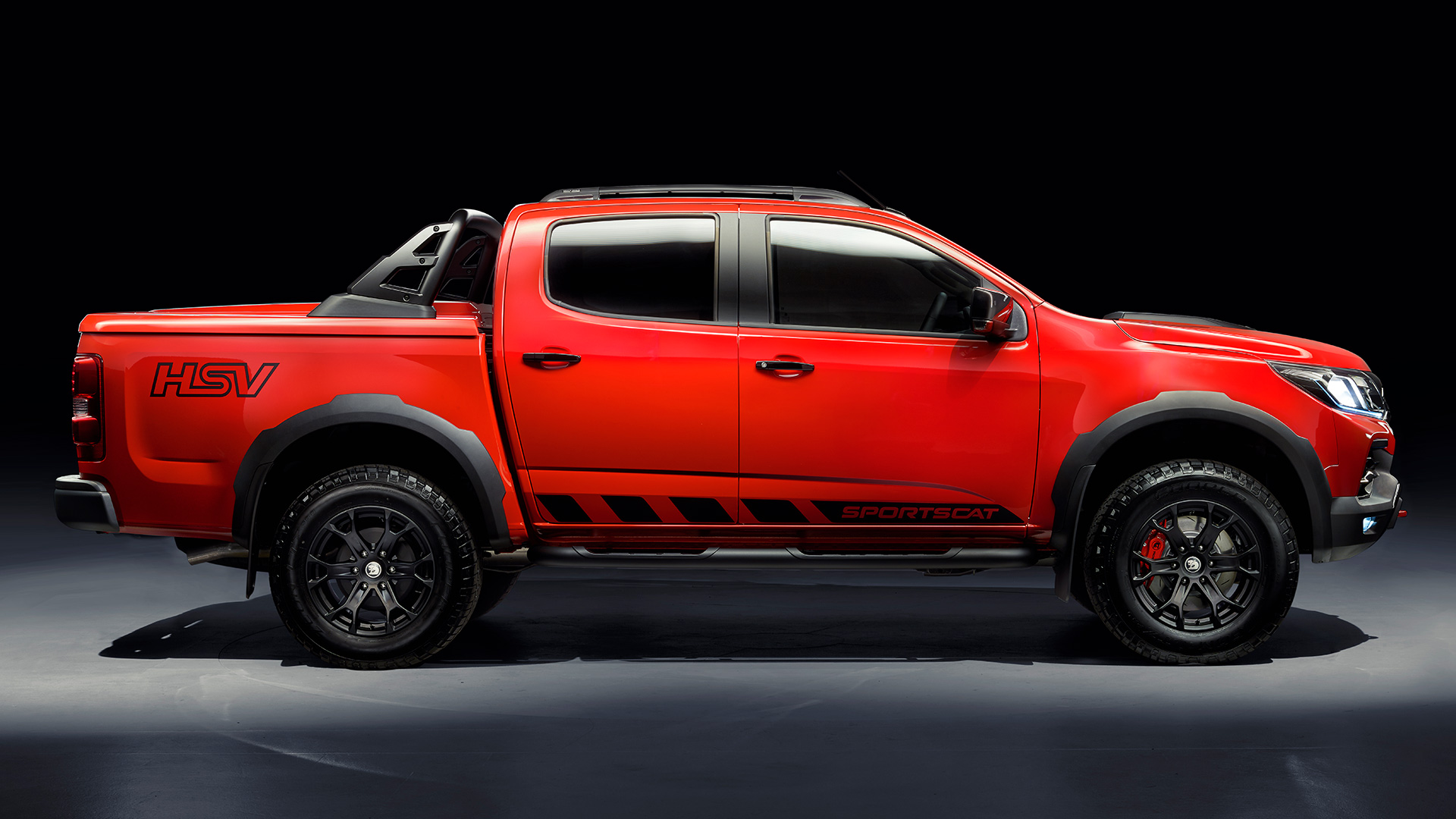

HSV SportsCat SV

*SportsCat SV shown with optional Sailplane.

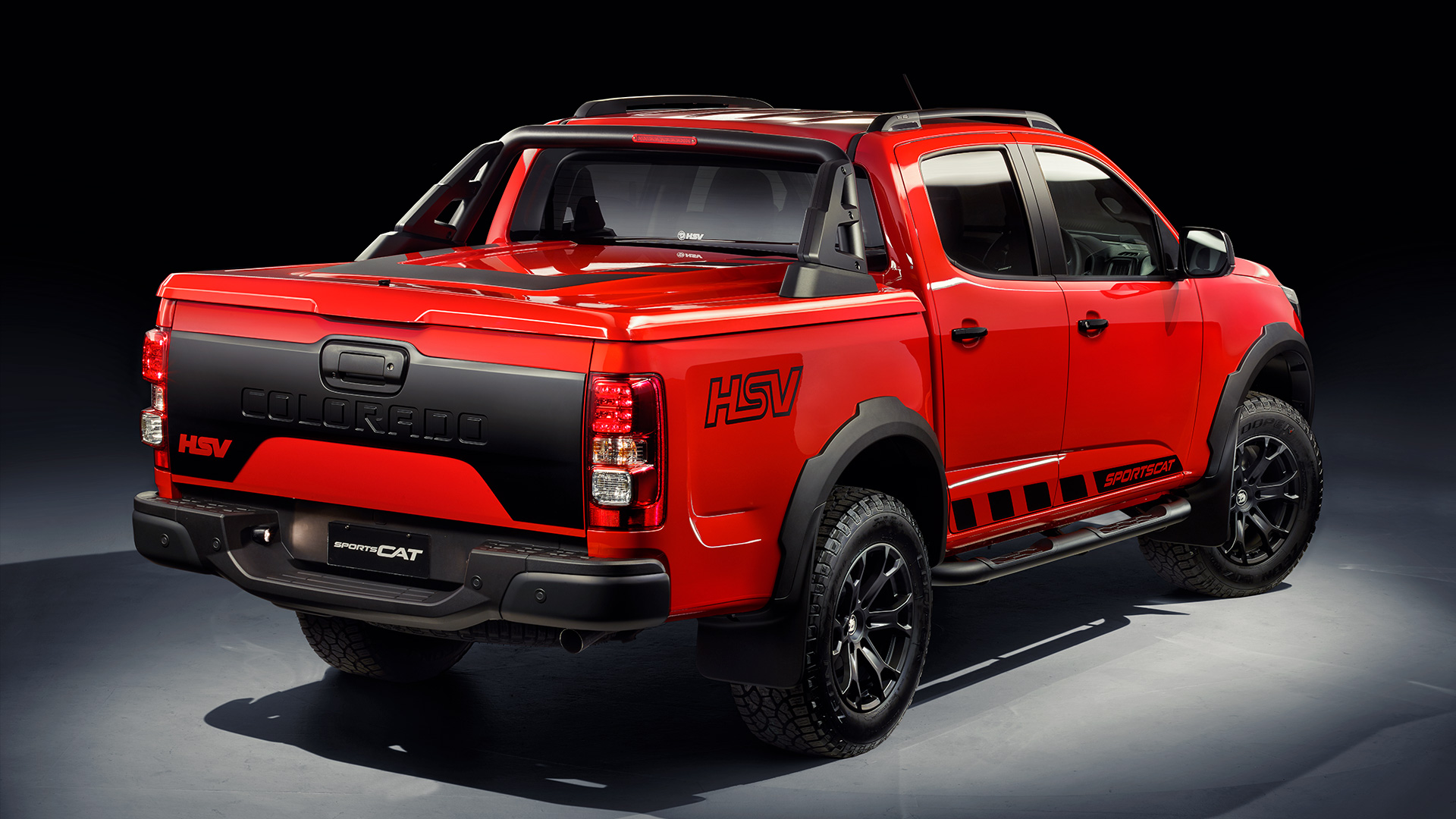

HSV SportsCat SV

*SportsCat SV shown with optional Sailplane.

HSV SportsCat SV

*SportsCat SV shown with optional Sailplane.

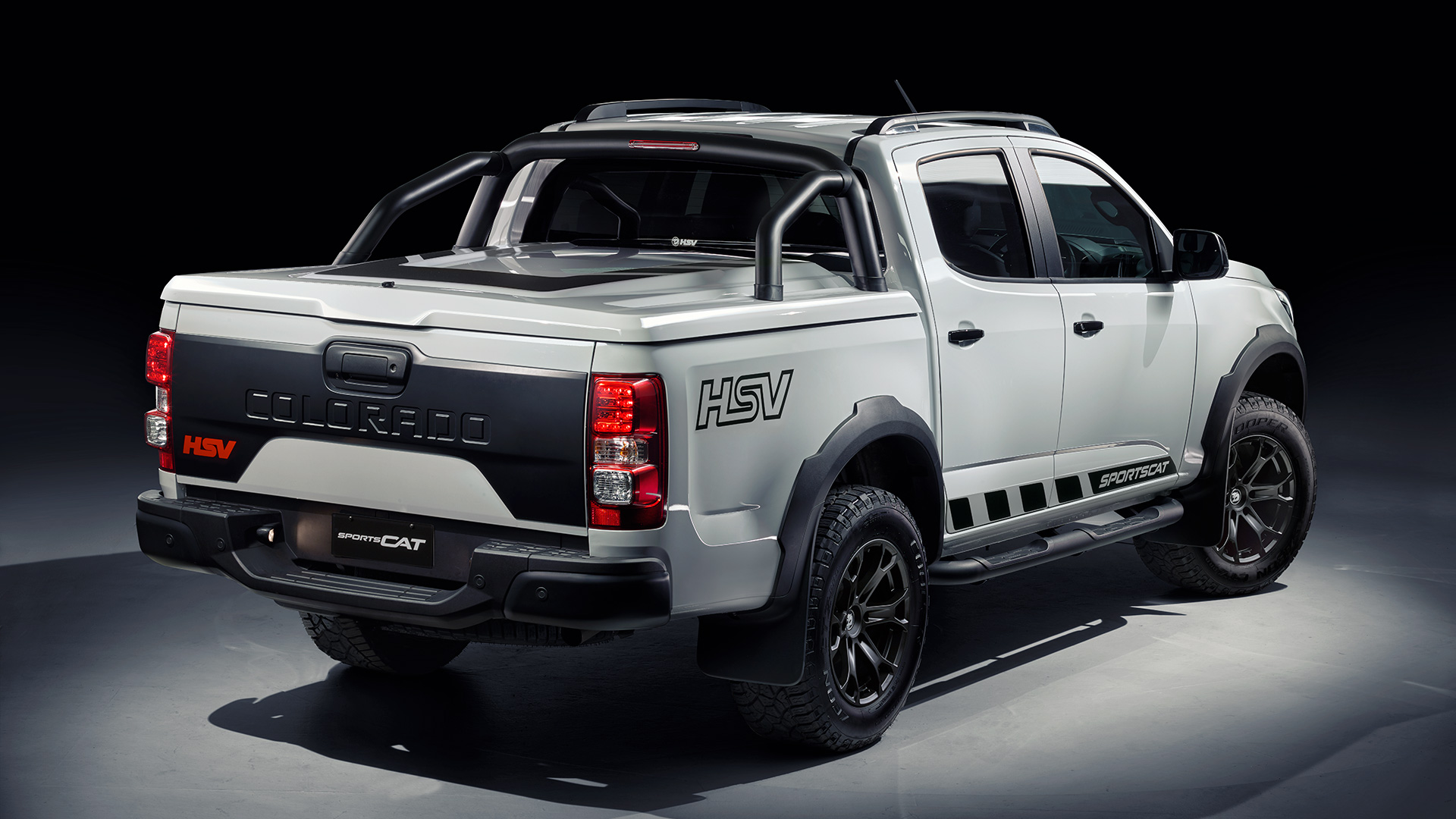

HSV SportsCat V

*SportsCat V shown.

HSV SportsCat V

*SportsCat V shown.

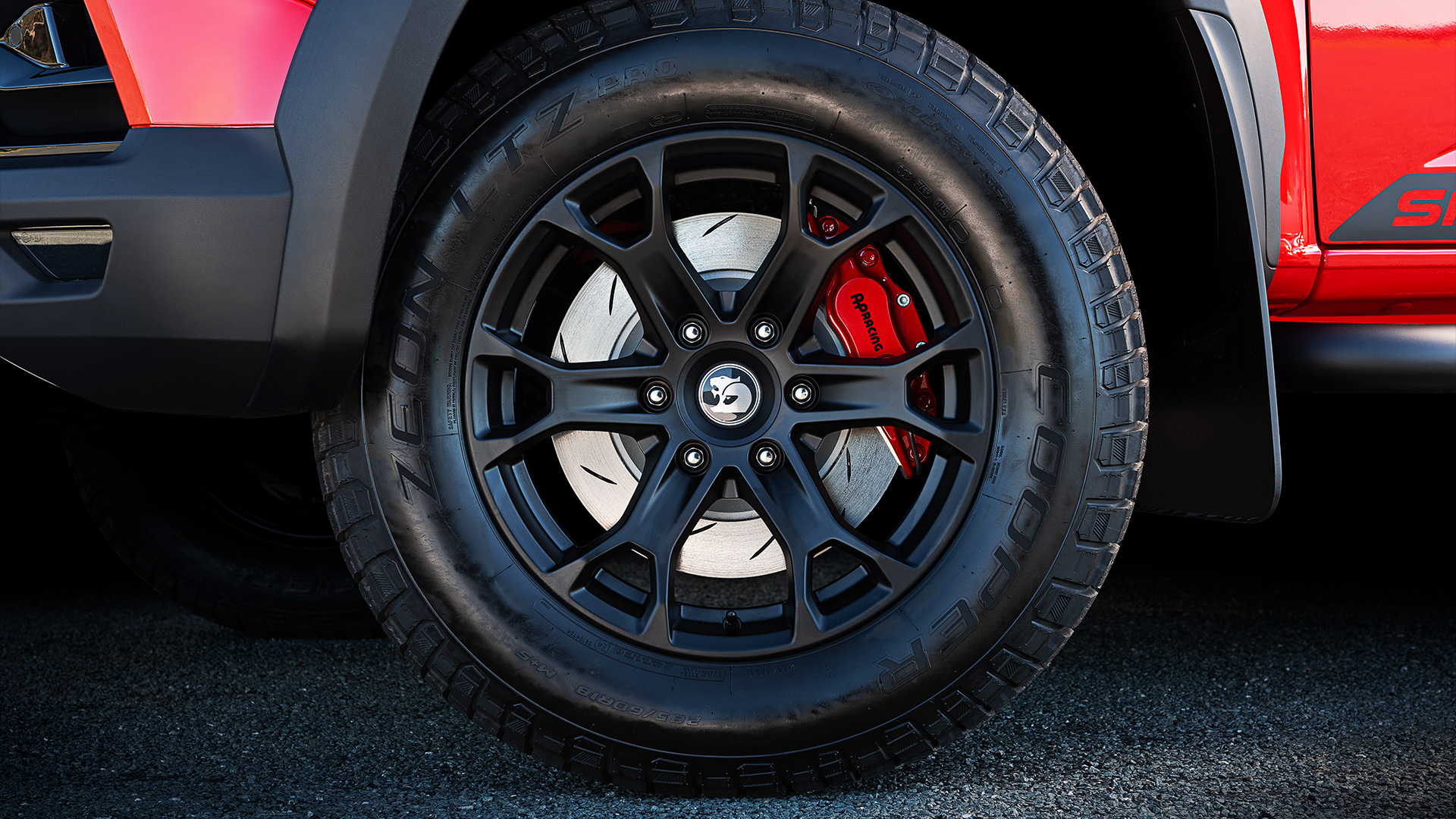

HSV SportsCat SV Alloy Wheels

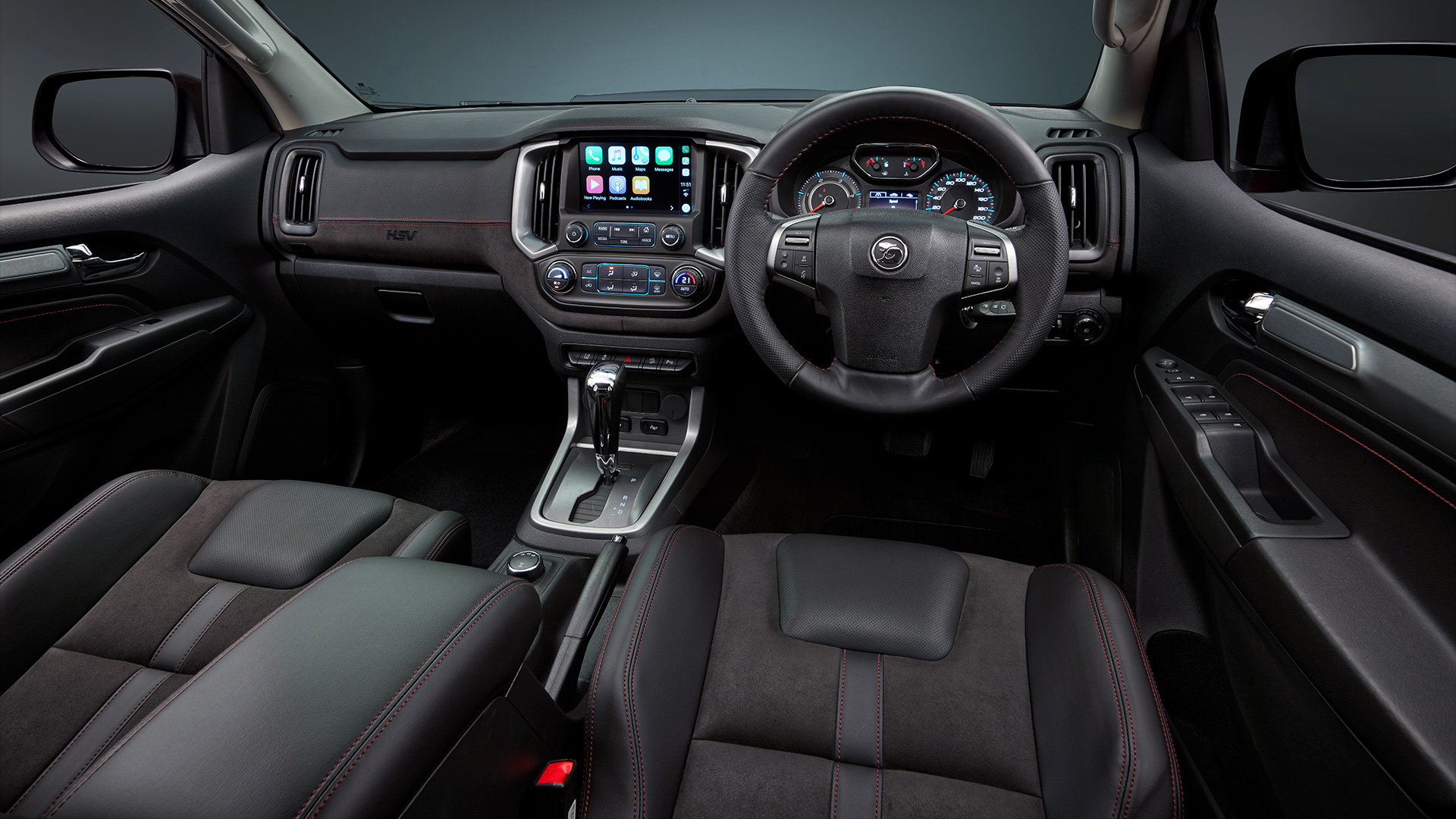

Sophisticated sports ergonomics

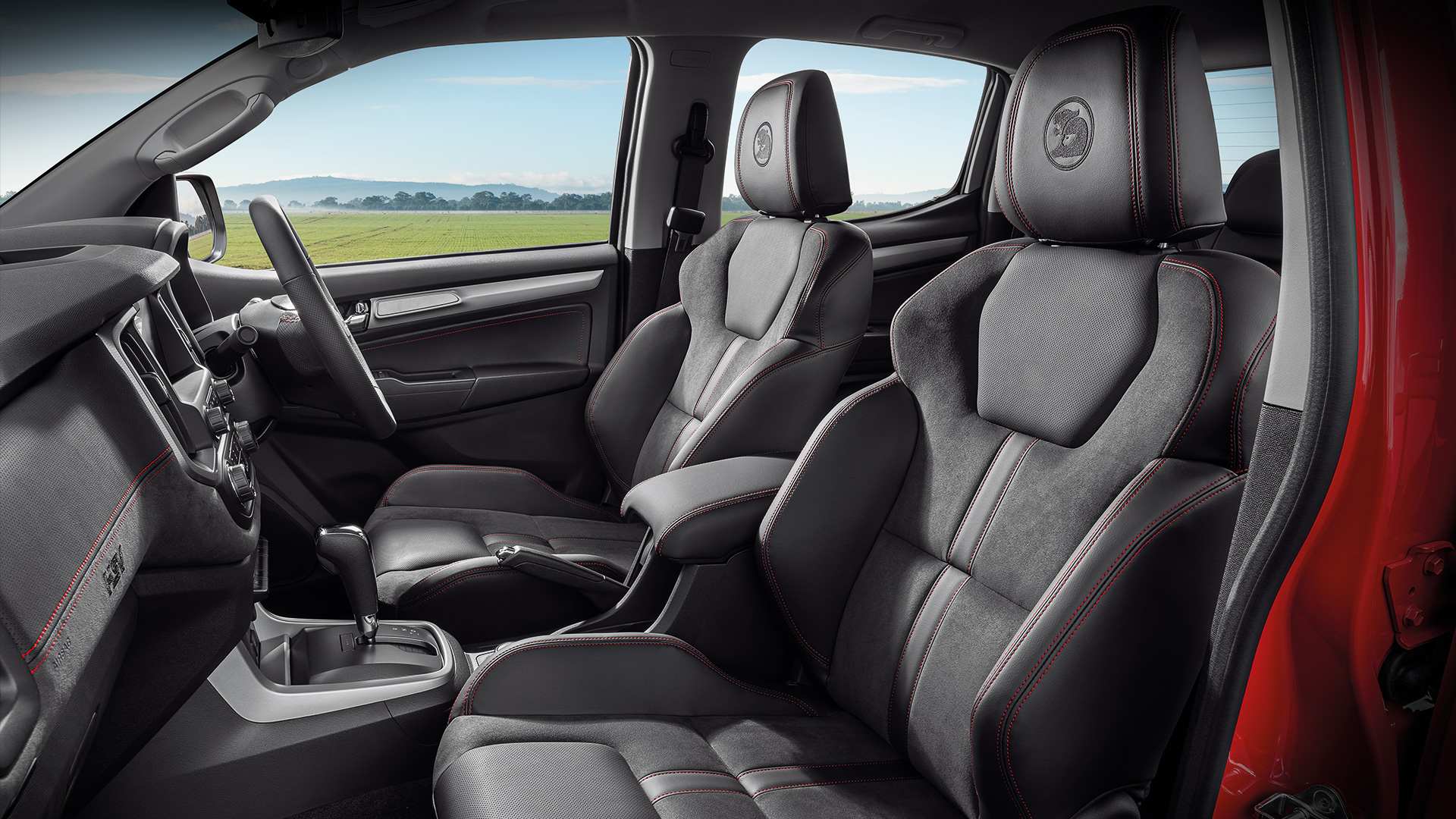

The interior of the Series 2 SportsCat range delivers the perfect marriage of form and function. Take the wheel of the SportsCat and the first thing you’ll notice is the firm embrace of the front 6-way electric adjustable HSV Performance seats. Special treatments adorn the dash pad, door inserts, centre console cover and floor mats, while rear seat passengers enjoy a similar level of comfort and style.

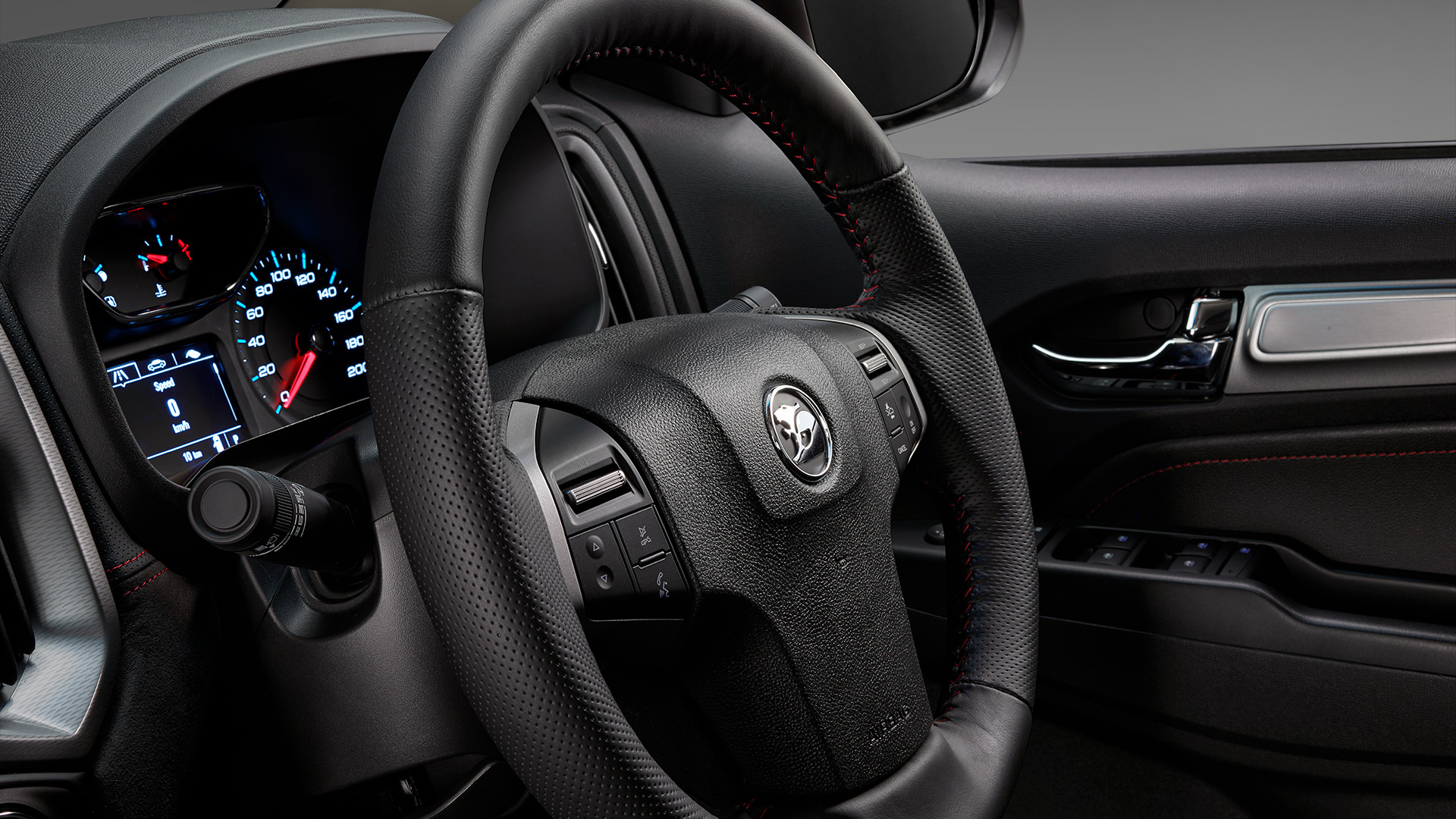

HSV SportsCat Interior
HSV SportsCat Interior
HSV SportsCat Interior

Engineered to excite

Rear De-coupling Anti-roll Bar

AP Racing Brake Package

The same brand as used on the GTSR range, this premium brake package features forged 4-piston fixed head calipers with large brake master cylinders and 362mm x 32mm front rotors to deliver superior pedal feel and braking performance, and comes standard on SportsCat SV and is available as an option on SportsCat V.


HSV Sports Suspension

Both SportsCat models feature HSV Sports suspension with the front spring rate stiffened to 110 Newtons/mm. This spring rate helps deliver outstanding front-end support with less body roll and more accurate transient response. The vehicle’s MTV dampers have also been tuned to suit this spring rate with the overall result being a more performance-based handling characteristic.

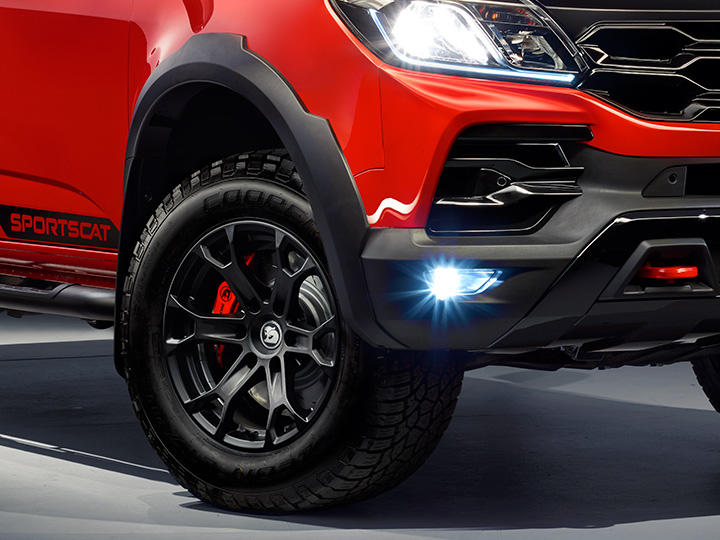

In addition to the increased spring rate, front ride height has been lifted by 25mm. This modification further improves the approach angle of the vehicle, increases ground clearance to the body and reduces the overall rake, delivering a more natural on-road stance.

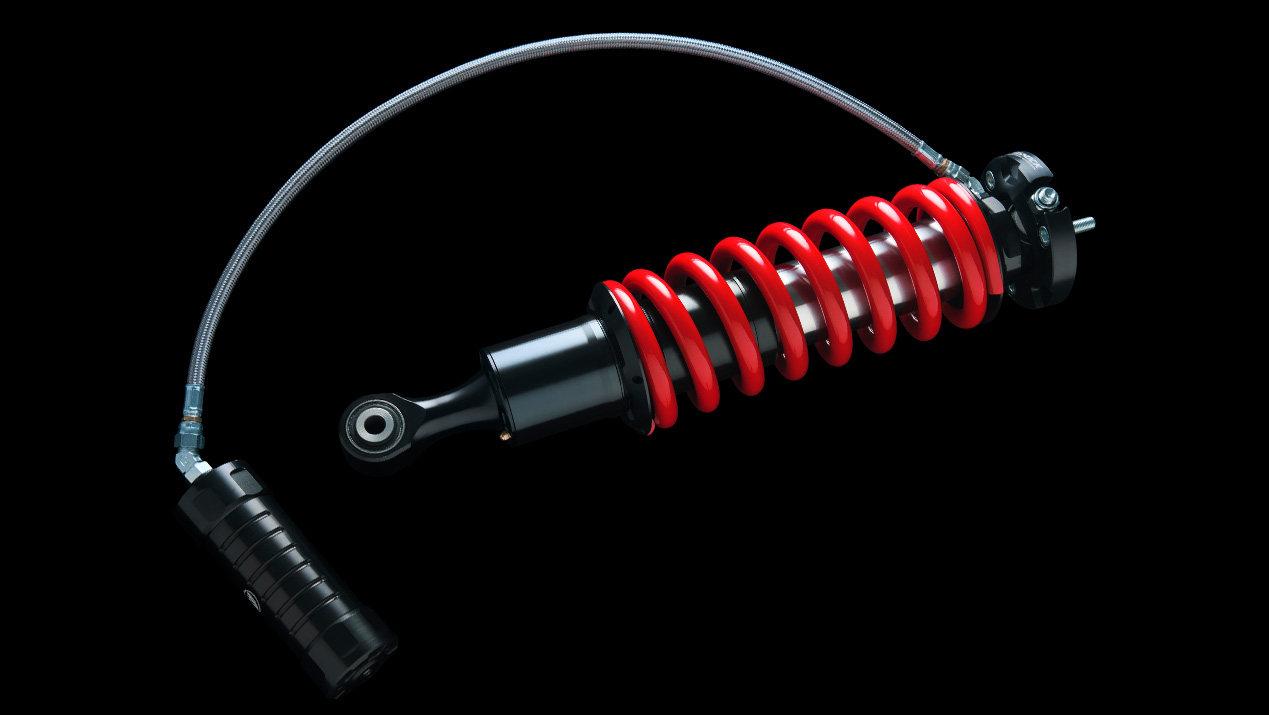

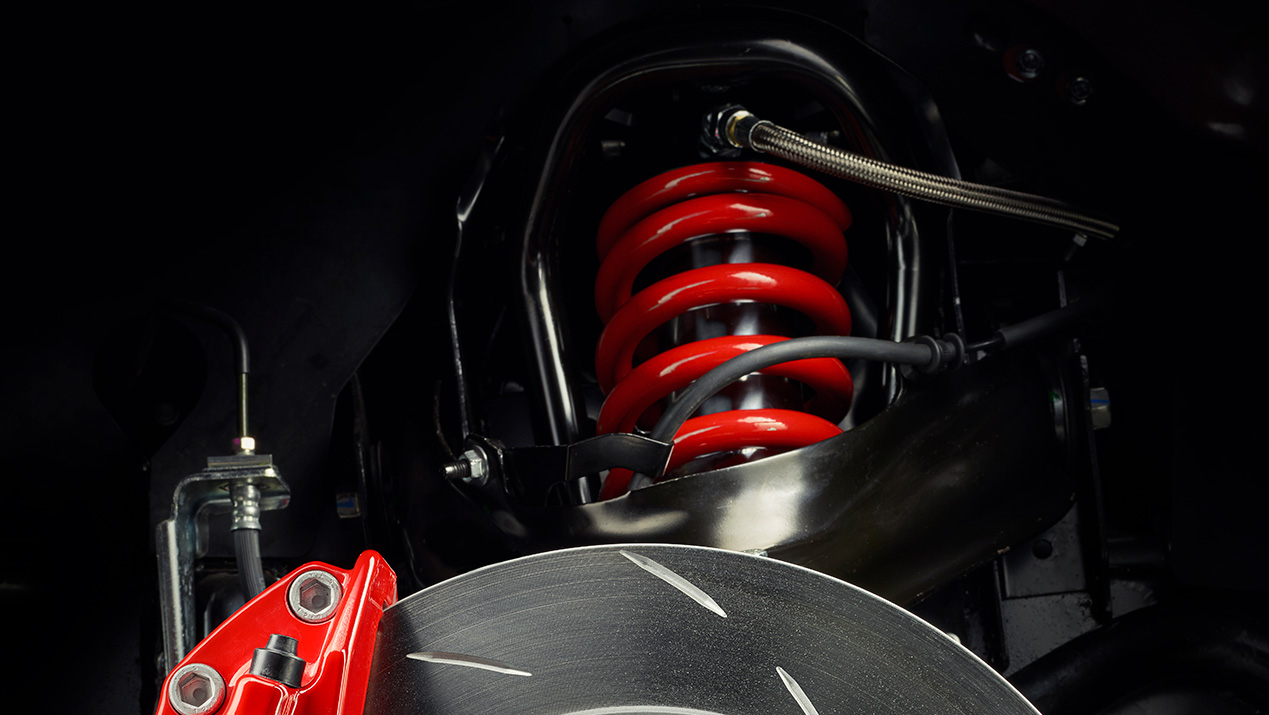

HSV SportsCat SV SupaShock Suspension
HSV SportsCat SV SupaShock Suspension
HSV SportsCat SV SupaShock Suspension

Engine & Transmissions

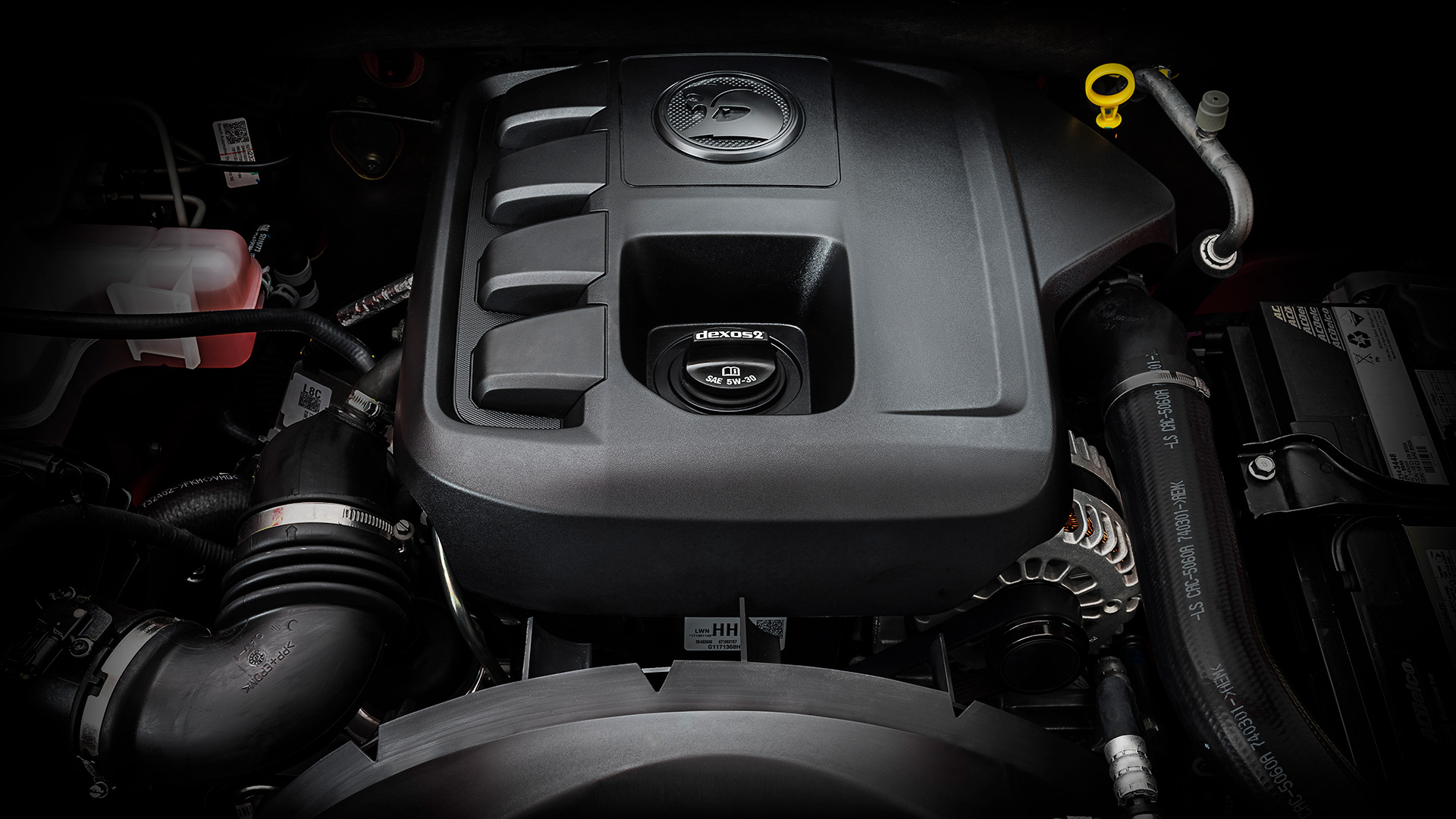

Both SportsCat models are powered by a 2.8 litre double overhead cam 4-cylinder common-rail injection Duramax Turbo Diesel engine that offers 147kW of power and up to 500Nm of torque when specified with the optional 6-speed automatic transmission. A 6-speed manual transmission is standard fitment.

Transfer Case (“Shift-on-the-fly”)

Hill Start Assist / Hill Descent Control

Hill Start Assist prevents the vehicle from rolling away when trying to pull away on an upward or downward gradient. The system engages automatically when a gradient is detected; it then acts to hold the Sportscat stationary after the brake is released, giving the driver time to apply the throttle. Hill Descent Control utilises the active braking capability of the ESC to maintain a controlled speed when travelling down-hill.

Trailer Sway Control

The Trailer Sway Control system detects the onset of instability in trailer towing situations and intervenes to keep the trailer under control. It does this by activating the brakes and reducing engine torque. TSC utilises the combination of ABS, Traction Control, Electronic Brake-force Distribution and Electronic Brake Assist to control wheel slip, reduce wheel-spin and enhance vehicle stability and predictability while accelerating and braking.

Roll-Over Mitigation

The Roll Over Mitigation function constantly monitors the vehicle’s behaviour with the help of the ESC sensors, and intervenes when the vehicle senses a roll-over situation. Roll Over Mitigation brakes individual wheels and reduces the driving torque to prevent roll over and to stabilize the vehicle.


Both SportsCat models have a maximum towing capacity of 3,500kg (braked) and 750kg (unbraked).

Rain Sensing Wipers

The rain sensor, located behind the internal rear-view mirror, detects the amount of water on the windscreen and automatically regulates the frequency of the windscreen wipers.

Forward Collision Alert

Forward Collision Alert, with Head Up Warning, uses a digital camera mounted on the windscreen with state-of-the-art image processing to observe and warn you of vehicles slowing down ahead. When approaching a vehicle too quickly, the system provides a flashing alert and rapidly beeps. The system also provides a visual alert if following a vehicle too closely.

Lane Departure Warning

Lane Departure Warning helps to combat distraction and drowsiness on the road. It alerts you to any unintentional lane departures with an audible warning, keeping you and your passengers on the right track.

Expand more technology/safety features

Front & Rear Park Assist

The Park Assist system is designed to identify and notify the driver of an object in the vehicle’s path when the vehicle is moving forward or reversing at a speed of less than 8 km/h.

Remote Start

When fitted with the optional automatic transmission, both vehicles feature remote start which allows the vehicle’s engine to be started from outside the vehicle by using the remote start button found on the key-fob. When activated, the climate control system will also deploy the previous settings.

Remote Window Activation

The windows can be opened by a secondary (5 seconds) press of the remote key-fob. The windows will automatically close when the doors are locked with the remote key-fob.

Rear View Camera

SportsCat’s rear view camera system consists of a video camera/module located at the rear of the vehicle. The system is activated when the transmission is placed in reverse, and is displayed in the infotainment system.

7 Airbags

SportsCat’s safety credentials are enhanced with the provision of front airbags for the driver and front passenger, front seat side impact airbags, full length side curtain airbags and a driver’s knee airbag.

Explore specifications

SportsCat V
SportsCat SV
2.8L 4-cylinder Duramax 2 Diesel
6-speed manual transmission
6-speed automatic transmission with Active Select
Shift on the fly 4WD
Limited Slip Differential (LSD)
Engine sump guard
SportsCat V
SportsCat SV
Forward Collision Alert (FCA)
Lane Departure Warning (LDW)
Front airbags for driver and front passenger
Front seat side impact airbags
Full length side curtain airbags
Driver knee airbag
AP Racing forged 4-piston brake calipers (362mm discs) - front
25.4mm brake master cylinder
Front disc brakes -
Tyre pressure monitoring / indicator
High ride height
HSV Sports Suspension (independent double wishbone, coil spring – front; leaf spring - rear)
SupaShock Suspension
Rear De-coupling anti-roll bar
Electronic Stability Control (ESC) incorporating: Anti-lock Braking System (ABS), Electronic Brakeforce Distribution (EBD), Roll Over Mitigation (ROM)
Traction Control System (TCS)
Hill Start Assist (HSA)
Trailer Sway Control (TSC)
Hill Descent Control (HDC)
Electric Power Steering (EPS)
Front seatbelt sash height adjust
Rear 3-point lap sash seatbelts
Automatic Locking Retractor (ALR) - Rear Seat
Driver and front passenger seatbelt warning lamp and tone
Rear seat seatbelt warning reminder
Rear seat child restraint anchor points (3)
ISOFIX child restraint anchor point
Remote keyless entry
Tailgate lock
Engine immobiliser
Flip keys (2)
SportsCat V
SportsCat SV
Remote Start (auto only)
Bluetooth® connectivity
Electronic cruise control
Driver’s foot rest
Rear-view camera
Rear Park Assist
Front Park Assist
Enhanced multi-function display: vehicle information menu, trip information menu, fuel economy menu, warning/messages
Power adjustable exterior mirrors
Power folding exterior mirrors
Electrochromatic (light sensitive) rear view mirror
Steering wheel height adjust
Multifunction steering wheel controls featuring: Bluetooth®, Cruise control, Audio controls
Leather-wrap sports profile steering wheel
Premium gear selector (manual)
Chrome gear selector (automatic)
Variable intermittent wipers
Rain sensing wipers
Rear window demister
Cabin Comfort
Air conditioning with pollen filter

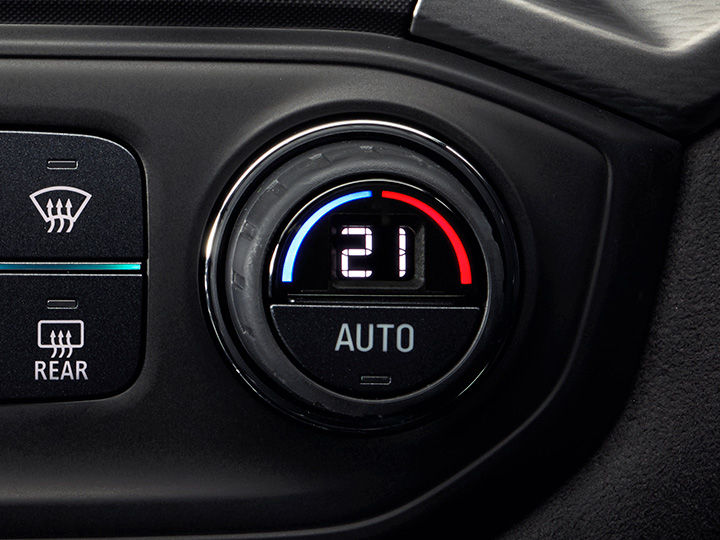

Electronic climate control
Power windows, with express driver and passenger up and down
Power windows, with express rear passenger up and down
Remote window activation via key fob
Dual front reading lamps
Centre dome lamp
Two 12 volt power outlets in centre dash
12 volt power outlet in rear of centre console
Vanity mirror on front passenger sunvisor with cover
Chrome interior door handles
Aluminium door insert - brushed
Driver and front passenger pillar assist handle
Front passenger overhead assist handle
Rear passenger overhead assist handles with coat hooks
Floor covering – carpet
HSV floor mats

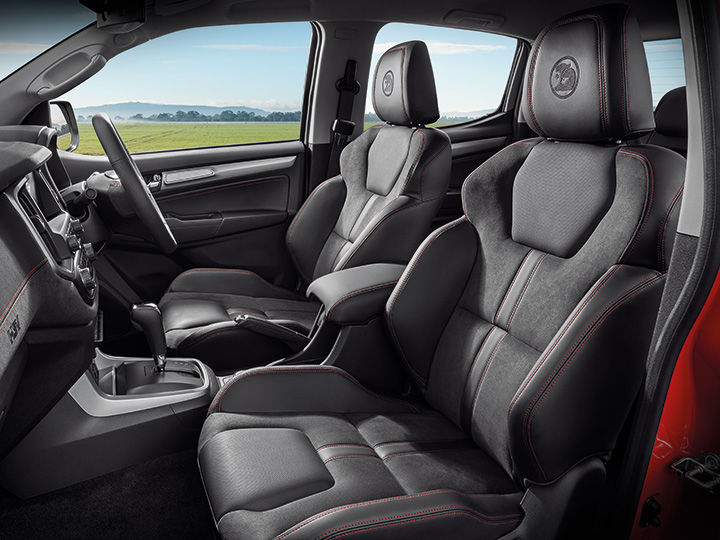

HSV Performance seats with Windsor suede inserts
Front heated seats
Front bucket seats
6-way electric adjustable driver’s seat
6-way adjustable front passenger seat
Head restraints – driver and front passenger
Head restraints – three rear passengers
Rear seat centre armrest
Front dual cup holders in centre console
Door pockets with integrated bottle storage
Driver and front passenger seat cushion pocket
Driver and front passenger seat back pocket
Rear seats with 60/40 split fold base and under seat storage
Coat hooks (2)
Roof console - sunglass holder & dual reading lamps
SportsCat V
SportsCat SV

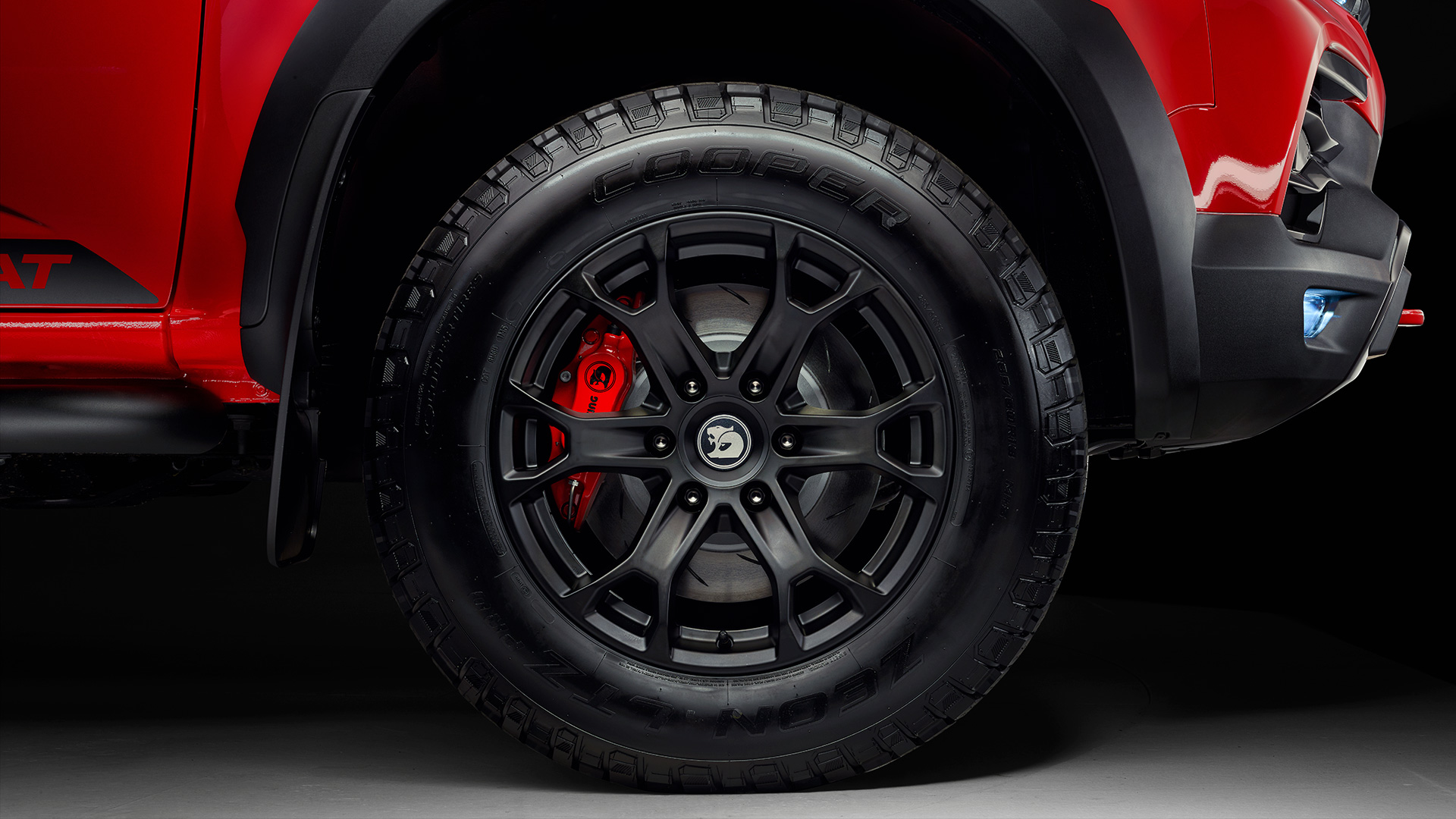

18” x 10” 6-spoke forged alloy wheels (Matte Black)

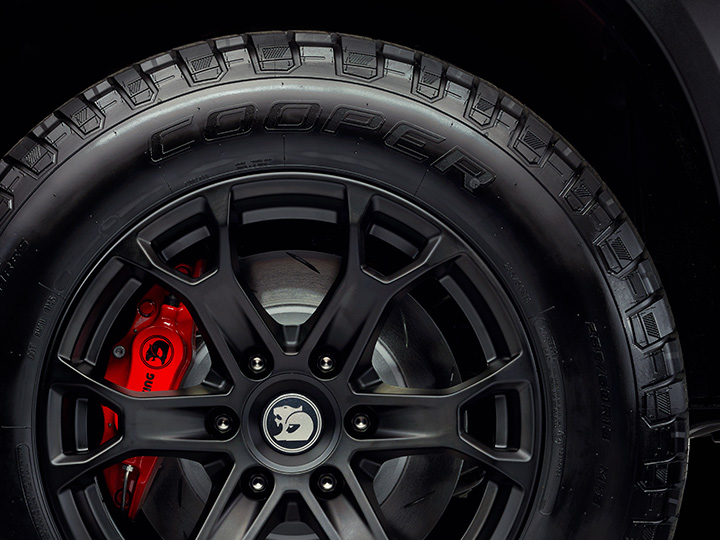

285/60 R18 Cooper Zeon LTZ Pro Sports All-terrain tyres
LED Daytime running lamps
Automatic on/off headlights
Halogen reflector headlights
Manual levelling headlights
Chrome headlamp bezel
LED tail lights
Front LED fog lamps
HSV recover hooks – front (2)
Front and rear mudflaps
Bonnet Bulge
Black exterior door handles
Black exterior mirrors
HSV designed front fascia with lower integrated splash tray
Black rear bumper

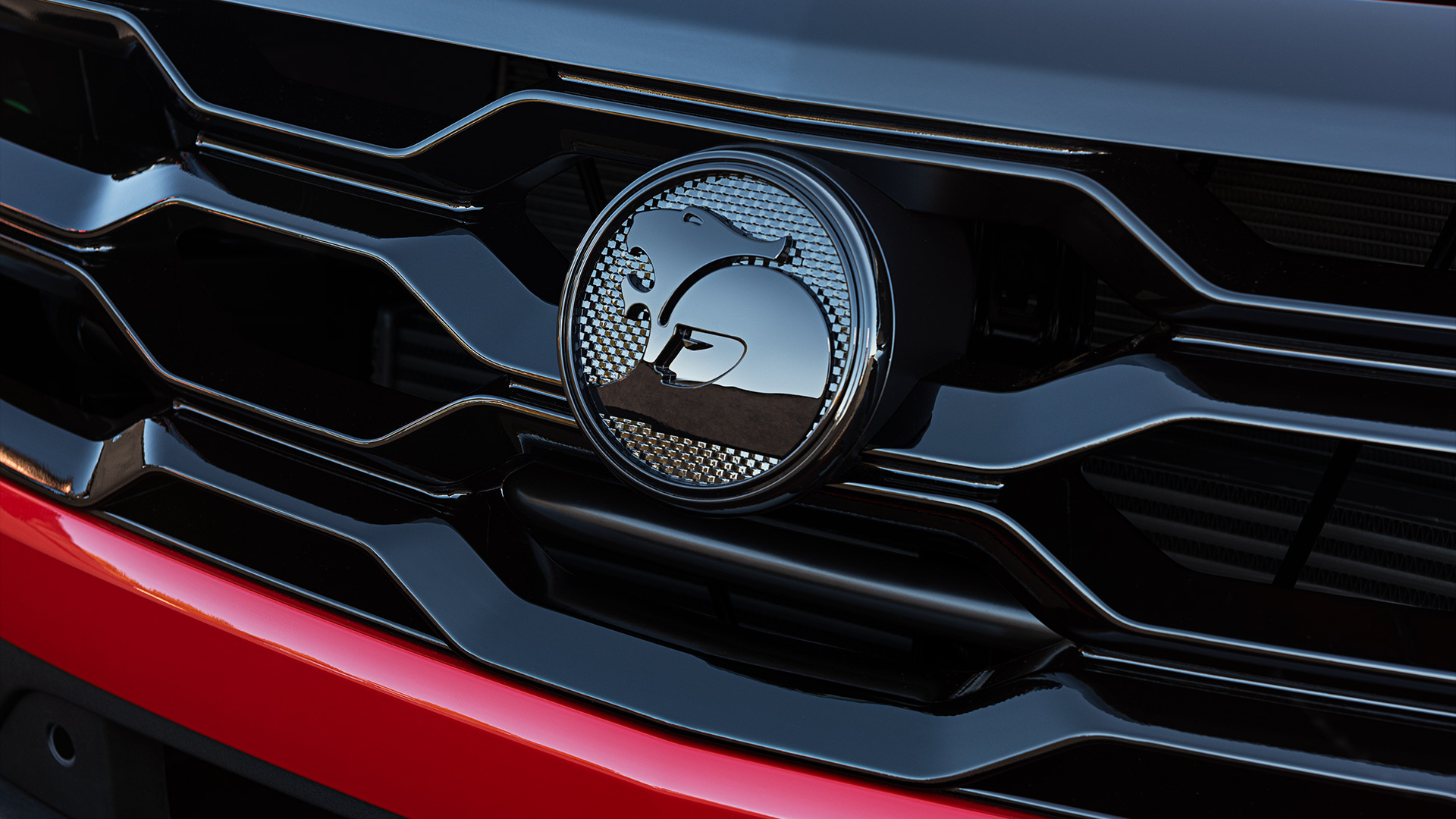

HSV ‘3D’ upper grille finished in Gloss Black
HSV ‘3D’ wheel arch flares
Soft open tail gate strut

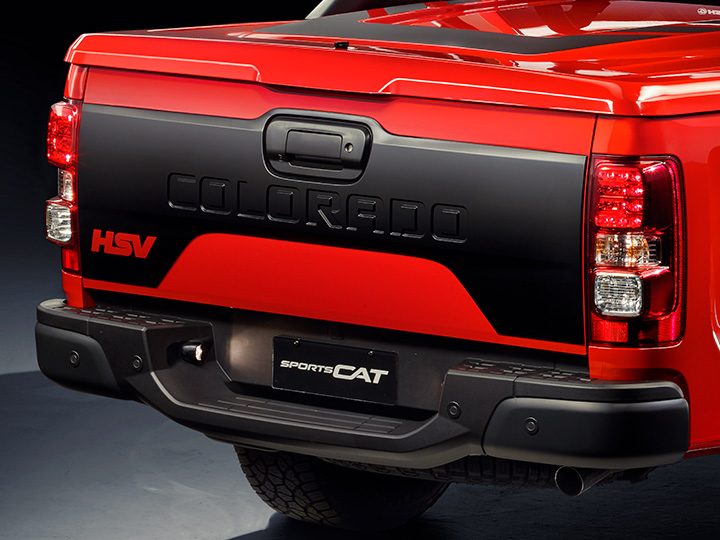

COLORADO tail gate applique

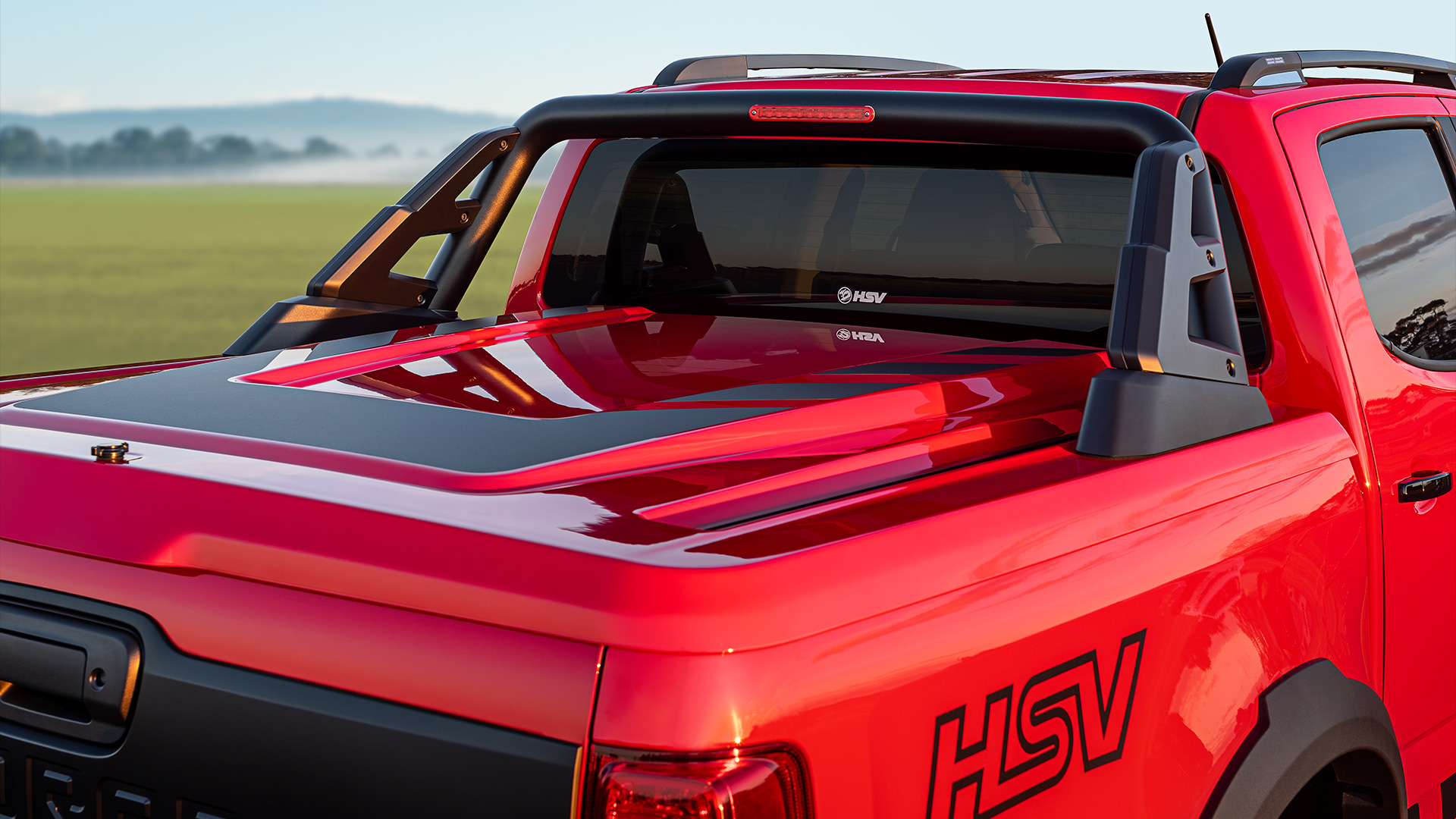

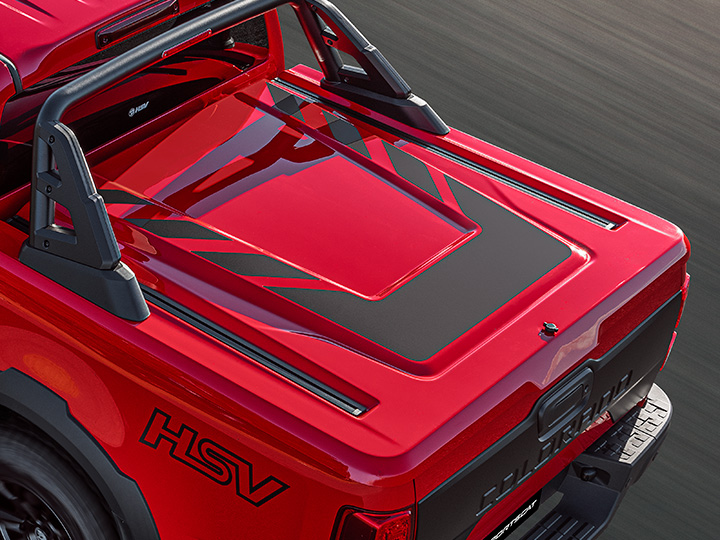

HSV hard tonneau with load rail provision

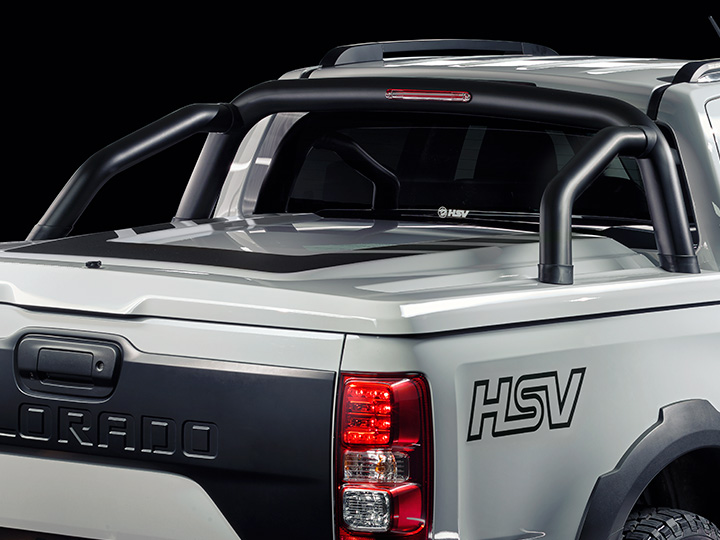

HSV alloy sportsbar
Delete HSV hard tonneau & alloy sportsbar -

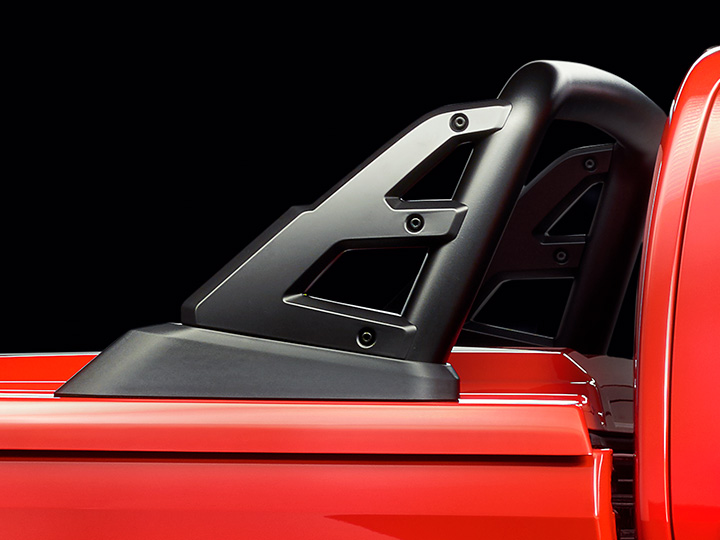

HSV sailplane -
Tubular side steps
Roof Rails
SportsCat V
SportsCat SV

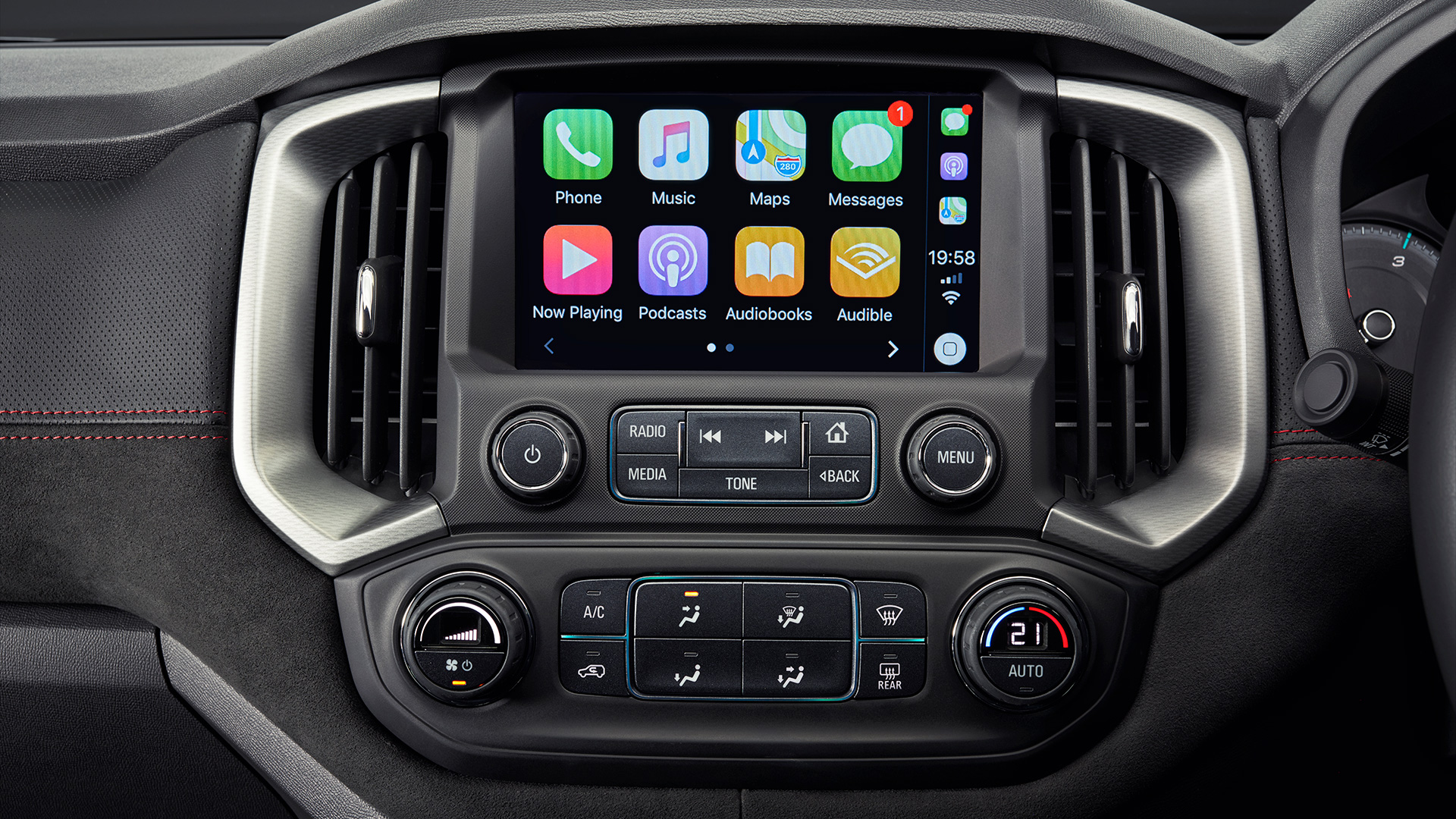

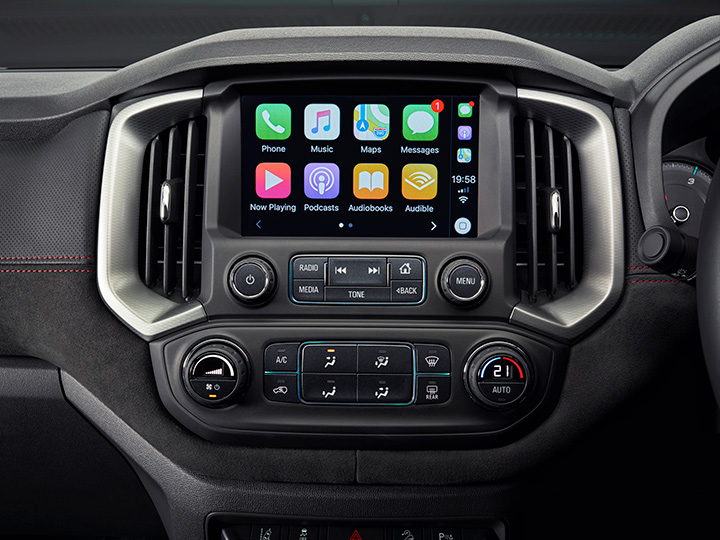

Phone projection featuring Apple® CarPlay™ and Android Auto™
MyLink infotainment system with 8" colour touchscreen
Digital Audio Broadcast (DAB+) multimedia
Embedded satellite navigation
7-speaker audio
Steering wheel mounted audio controls
USB input with iPod® connectivity
Auxiliary input
Roof mounted antenna

Standard      Optional      N/A  -

Explore technical data

Key Technical Data
Maximum power (ECE, kW) 147 @ 3600rpm
Maximum torque (ECE, Nm) 440 @ 2000rpm (manual) / 500 @ 2000rpm (automatic)
Gear ratios (man / auto)
1st 4.02 / 4.06
2nd 2.21 / 2.37
3rd 1.46 / 1.55
4th 1.00 / 1.16
5th 0.76 / 0.85
6th 0.59 / 0.67
Reverse 3.63 / 3.20
Final drive ratio 4.10 / 3.42
Fuel tank capacity (L) 76
Approach angle (deg) 32
Departure angle (deg) 24
Ramp breakover angle (deg) 27
SportsCat V
SportsCat SV
Weights (kg)
Gross Vehicle Mass (GVM) 3150 3150
Gross Combined Mass (GCM) 6300 6300
Maximum towing mass # (kg)
Braked 3500 3500
Unbraked 750 750
Kerb mass (man / auto) 2257 / 2250 2257 / 2250
Axle load limits (kg)
Front 1450 1450
Rear 1850 1850
Vehicle Dimensions (mm)
Body width 1933
Height 1826
Ground clearance 251
Wheelbase 3096
Length 5345
Tray height 466
Tray length 1484
Tray width (between wheel arches) 1122
Tray width 1534
Interior Dimensions (mm)
Front head room 1005
Rear head room 973
Front leg room 1045
Rear leg room 856
Front shoulder room 1488
Rear shoulder room 1472

#Conditions apply.

Personalise your SportsCat

Automatic Transmission

Automatic Transmission

Both SportsCat models feature the optional availability of a 6-speed automatic transmission with Active Select. The provision of this transmission option also sees maximum torque increase to 500Nm.

SupaShock Suspension

SupaShock Suspension

Available as an option on both SportsCat V and SportsCat SV, these linear-style dampers are significantly larger than regular dampers, delivering superior performance and road grip without compromising ride quality or body control.

Roof Rack

Load Rack

This durable and easy to load rack mounts seamlessly into the hard tonneau’s built-in accessory rails to provide increased carrying capability and the flexibility to carry those items that are difficult to fit in the cabin or the tub.

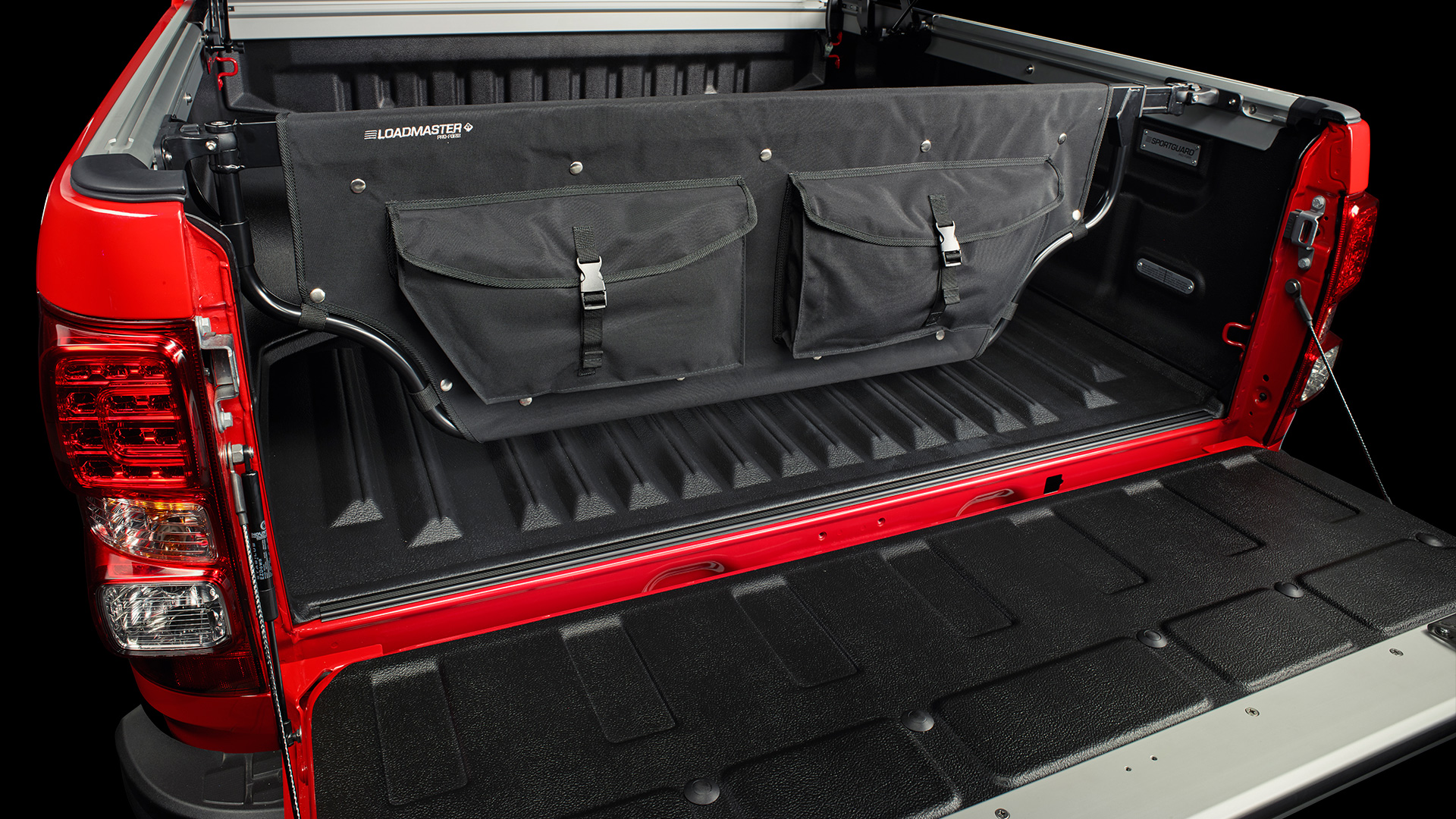

Load Master

The Load Master cargo management system allows you to partition the gear in the tub of your vehicle for easy access, while preventing it from sliding around and potentially causing damage to the tub and/or your equipment.

The Load Master cargo organiser simply slides into the T-channels on each side of the vehicle tub. An extending frame and flexible hinges on each end of the divider allow for both parallel and angled positioning, while two pockets along the length of the divider provide additional storage for smaller items.

The Load Master is made using high grade steel and fabric which is impact resistant, tough and durable. The clever construction means the Load Master can be adjusted and fixed or removed in seconds to allow maximum flexibility for any sized load.

Eye Bolt

Eye Bolt

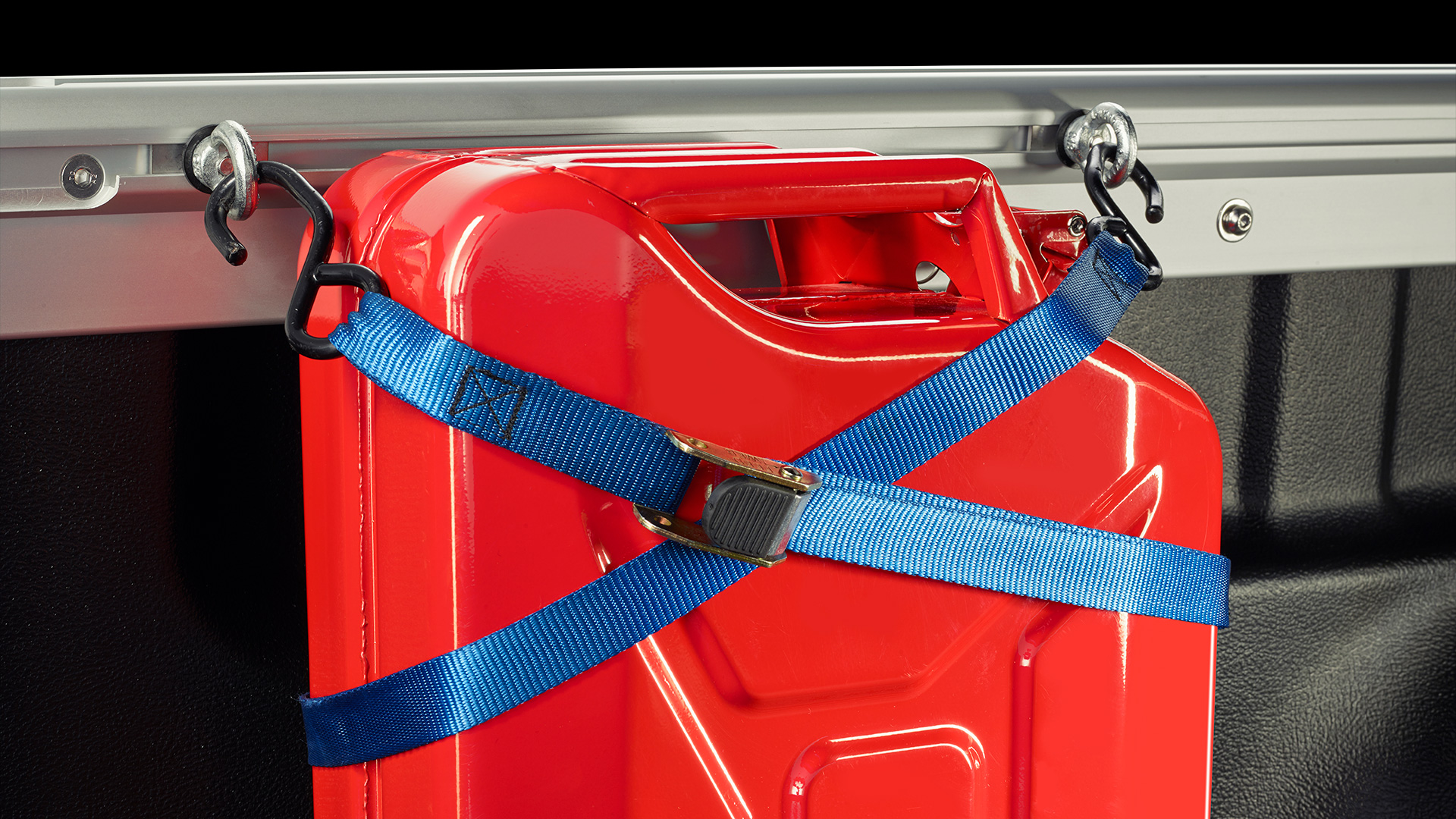

The eyebolt attaches to the interior rail of the tub to assist you to tie down your equipment quickly and securely.

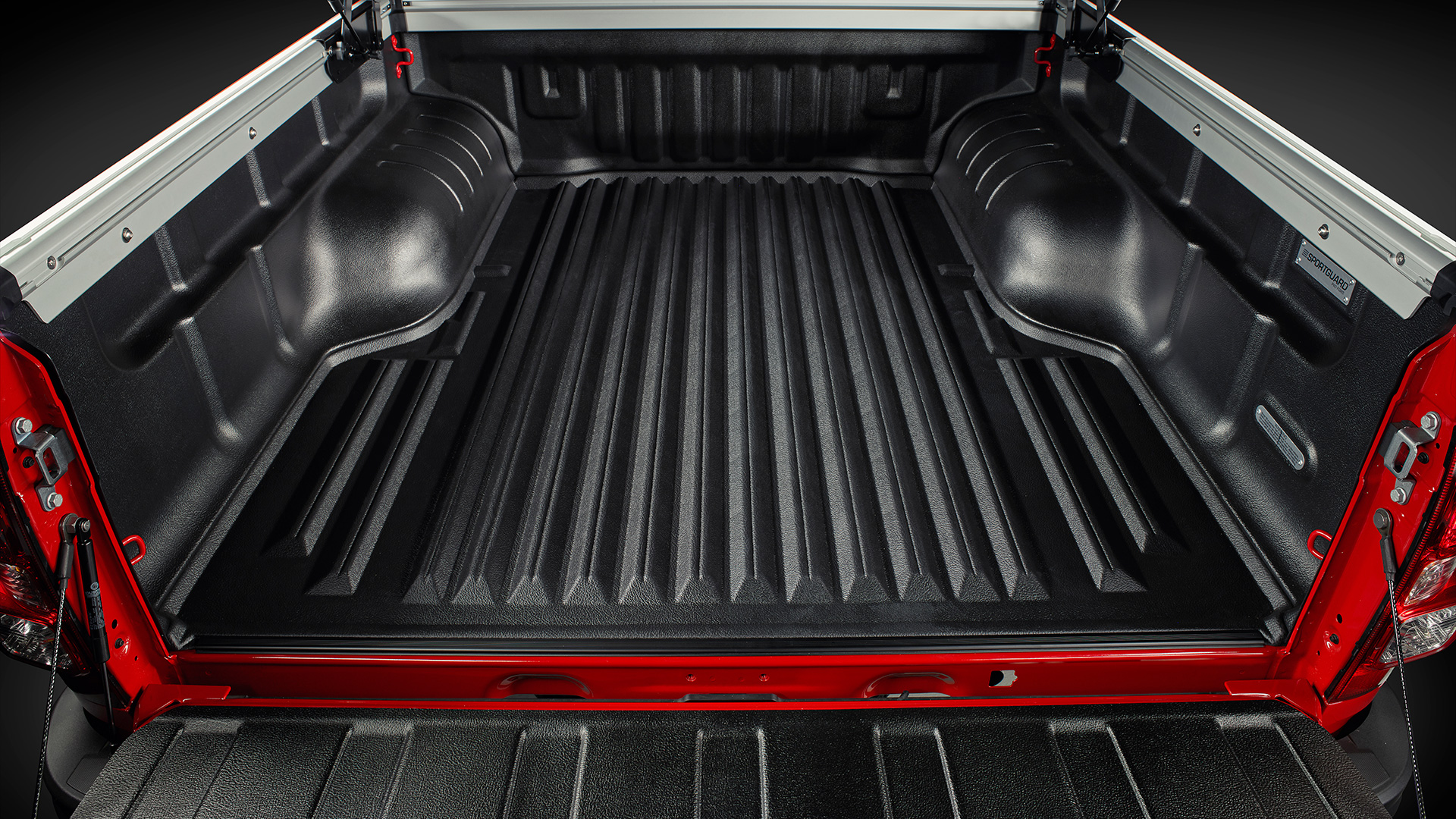

Custom moulded from highly durable materials, the bed-liner provides long lasting and stylish protection to help keep your SportsCat looking like new.

SportsCat Accessories

See your HSV Parts & Service Centre to discuss your accessory requirements.

  • 12V Auxiliary Power System
  • Bonnet Protector (Smoked)
  • Cup Holder
  • Electric Trailer Brake Controller Package
  • Headlamp Protectors
  • Locking Wheel Nuts (Set of 4)
  • Off Road Vehicle Recovery Kit
  • Rear Steel Step Package
  • Seat Cover Package
  • Seat Inserts (Sheepskin)
  • Smartshades (Rear Doors)
  • Smartshades (Rear Window)
  • Snorkel Kit
  • Spare Wheel Lock Nut
  • Tie Down Strap Kit
  • Towing Package
  • Towing Package (Incl. Electric Trailer Brake Controller)
  • Tow Ball in Chrome (50mm)
  • Trailer Harness
  • Weathershields (Slimline)

Exciting Walkinshaw Performance products are available now for this model!
